Toyota Highlander Owners Manual: Taking out the jack

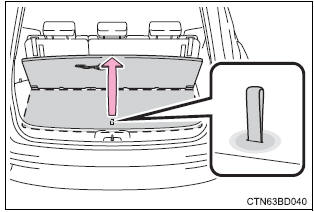

- Pull the strap upwards to open
the center deck board.
![Toyota Highlander. Taking out the jack](images/books/1/13/index.12.jpg)

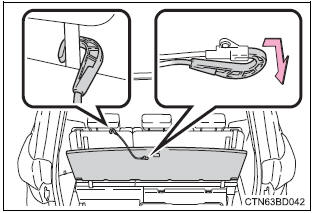

- To secure the center deck
board, remove the hook on the
backside of the center deck
board and attach the hook to
the head restraint on the third
seats as shown.
![Toyota Highlander. Taking out the jack](images/books/1/13/index.13.jpg)

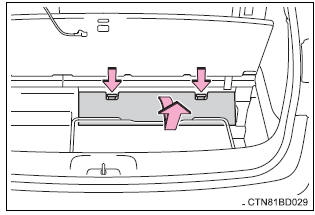

- Remove the jack cover.
![Toyota Highlander. Taking out the jack](images/books/1/13/index.14.jpg)

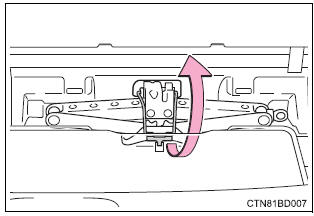

- Remove the jack after removing
the hook.
![Toyota Highlander. Taking out the jack](images/books/1/13/index.15.jpg)
Spare tire
jack handles
wheel nut wrench
Jack
adapter socket
Warning
Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause ...
