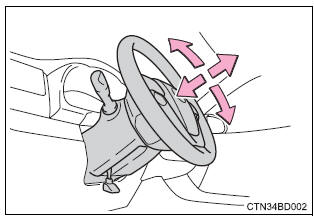

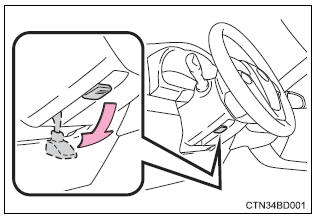

Adjustment procedure
After adjustment, pull the lever up to secure the steering wheel.

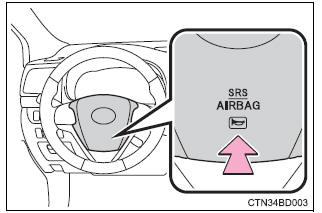

Horn
To sound the horn, press on or close to the mark.
Warning
Do not adjust the steering wheel while driving. Doing so may cause the driver to mishandle the vehicle and cause an accident, resulting in death or serious injury. After adjusting the steering wheel Make sure that the steering wheel is securely locked. Otherwise, the steering wheel may move suddenly, possibly causing an accident, and resulting in death or serious injury. Also, the horn may not sound if the steering wheel is not securely locked. |
Power outlet socket ASSY
REPLACEMENT
HINT:
COMPONENTS: See page 67-2
Installation is in the reverse order of removal.
1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER
2. REMOVE FRONT SEAT ARMREST ASSY CENTER
3. REMOVE CONSOLE BOX ASSY
4. REMOVE POWER OUTLET SOCKET ASSY
(a) Remove the power outlet sock ...
