Toyota Highlander Owners Manual: Personal lights
Turn the light on/off

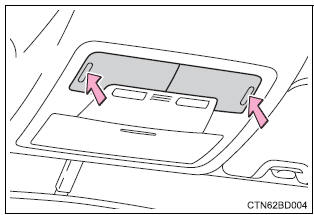

- Front

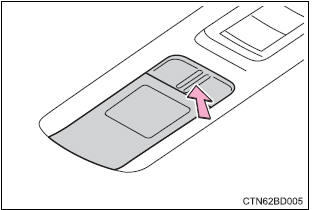

- Rear
Illuminated entry system
- Vehicles without a smart key system the lights automatically turn on/off according to the engine switch position, whether the doors are locked/unlocked, and whether the doors are open/ closed.
- vehicles with a smart key system the lights automatically turn on/off according to engine switch mode, the presence of the electronic key, whether the doors are locked/unlocked, and whether the doors are opened/closed.
To prevent battery discharge
If the following lights are left on when the engine switch is turned off, the lights will go off automatically after 20 minutes:
- interior lights
- personal lights
- front door courtesy lights
- ambient lights (if equipped)
- engine switch light (vehicles with a smart key system)
Customization
Settings (e.G. The time elapsed before lights turn off) can be changed.
(Customizable features: )
