Toyota Highlander Owners Manual: Opening the fuel tank cap

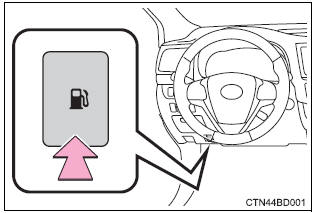

- Press the opener switch.

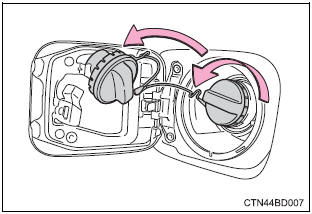

- Turn the fuel tank cap slowly to remove it and hang it on the back of the fuel filler door.

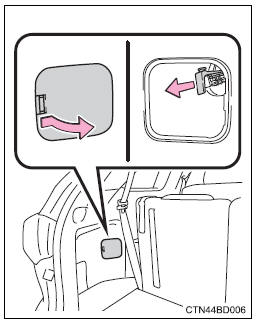

When the fuel filler door cannot be opened by pressing the inside switch
Remove the cover inside the luggage compartment and pull the lever.
Before refueling the vehicle
Close all the doors and windows, and turn the engine switch to the
"lock" position (vehicles without a smart key system) or off (vehicles
with a smart key system).
Confirm the type ...
Closing the fuel tank cap
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Warning
When replacing the fuel tank cap
...
