Toyota Highlander Owners Manual: Moon roof

Use the overhead switches to open and close the moon roof and tilt it up and down.

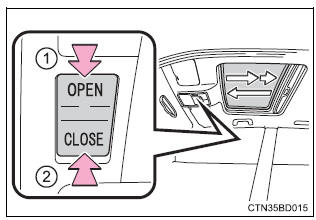

Opening and closing

  1. Opens the moon roof* the moon roof stops slightly before the fully open position to reduce wind noise.

    Press the switch again to fully open the moon roof.

  2. Closes the moon roof*

*: lightly press either side of the moon roof switch to stop the moon roof partway.

Toyota Highlander. Opening and closing

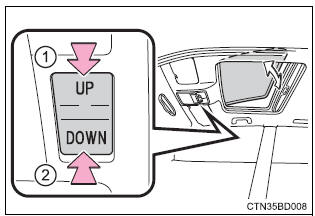

Tilting up and down

  1. Tilts the moon roof up*
  2. Tilts the moon roof down*

*: lightly press either side of the moon roof switch to stop the moon roof partway.

Toyota Highlander. Tilting up and down


The moon roof can be operated when

Operating the moon roof after turning the engine off

Jam protection function

If an object is detected between the moon roof and the frame while the moon roof is closing or tilting down, travel is stopped and the moon roof opens slightly.

Sunshade

The sunshade can be opened and closed manually. However, the sunshade will open automatically when the moon roof is opened.

Door lock linked moon roof operation

*: These settings must be customized at your toyota dealer.

When the moon roof does not close normally

Perform the following procedure:

  1. Stop the vehicle.
  2. Press and hold the "close" switch.*1 The moon roof will close, reopen and pause for approximately 10 seconds.* 2 Then it will close again, tilt up and pause for approximately 1 second.

    Finally, it will tilt down, open and close.

  3. Check to make sure that the moon roof is completely closed and then release the switch.
  1. stop the vehicle.
  2. Press and hold the "up" switch*1 until the moon roof moves into the tilt up position and stops.
  3. Release the "up" switch once and then press and hold the "up" switch again.*1 The moon roof will pause for approximately 10 seconds in the tilt up position.* 2 Then it will adjust slightly and pause for approximately 1 second.

    Finally, it will tilt down, open and close.

  4. Check to make sure that the moon roof is completely closed and then release the switch.

*1: If the switch is released at the incorrect time, the procedure will have to be performed again from the beginning.

*2: If the switch is released after the above mentioned 10 second pause, automatic operation will be disabled. In that case, press and hold the open/close switch in the close position or press and hold the "up" switch.

The moon roof will tilt up and pause for approximately 1 second. Then it will tilt down, open and close. Check to make sure that the moon roof is completely closed and then release the switch.

If the moon roof does not fully close even after performing the above procedure correctly, have the vehicle inspected by your toyota dealer.

Moon roof open warning buzzer

The buzzer sounds and a message is shown on the multi-information display in the instrument cluster when the engine switch is turned off and the driver's door is opened with the moon roof open.

Customization

Settings (e.G. Linked door lock operation) can be changed.

(Customizable features: )

Warning


Observe the following precautions.

Failure to do so may cause death or serious injury.

Opening the moon roof

  • do not allow any passengers to put their hands or heads outside the vehicle while it is moving.
  • Do not sit on top of the moon roof.

Closing the moon roof

  • check to make sure that all passengers do not have any part of their bodies in a position where they could be caught when the moon roof is being operated.
  • Do not allow children to operate the moon roof.

    Closing the moon roof on someone can cause death or serious injury. The driver is responsible for instructing children not to operate the moon roof.

Jam protection function

  • never use any part of your body to intentionally activate the jam protection function.
  • The jam protection function may not work if something gets caught just before the moon roof fully closes.
