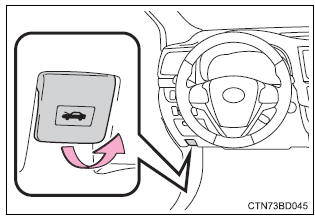

Release the lock from the inside of the vehicle to open the hood.

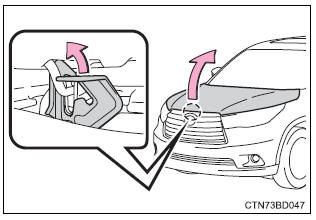

The hood will pop up slightly.
![]()

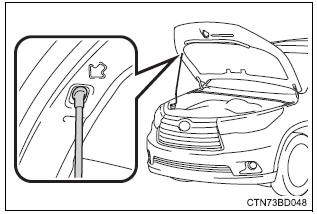

Check that the hood is fully closed and locked. If the hood is not locked properly, it may open while the vehicle is in motion and cause an accident, which may result in death or serious injury. After installing the support rod into the slot Make sure the rod supports the hood securely preventing it from falling down onto your head or body. |
![]()
Be sure to return the support rod to its clip before closing the hood. Closing the hood with the support rod not clipped could cause the hood to bend. |
Accelerator pedal rod ASSY (3MZ-FE)
REPLACEMENT
1. REMOVE ACCELERATOR PEDAL ROD ASSY
(a) Disconnect the accelerator pedal position sensor connector.
(b) Remove the 2 bolts and pedal rod.
2. INSTALL ACCELERATOR PEDAL ROD ASSY
(a) Install the pedal rod with the 2 bolts.
Torque: 4.9 NVm (50 kgfVcm, 43 in.Vlbf)
(b) Connect th ...
