Toyota Highlander Service Manual: Glossary of sae and Toyota terms

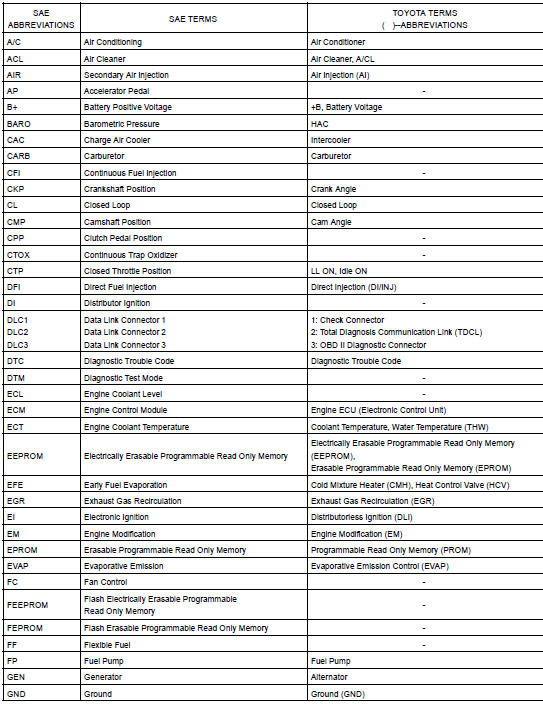

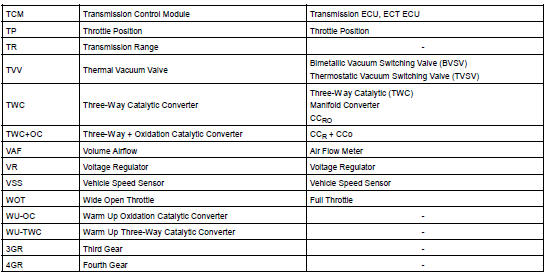

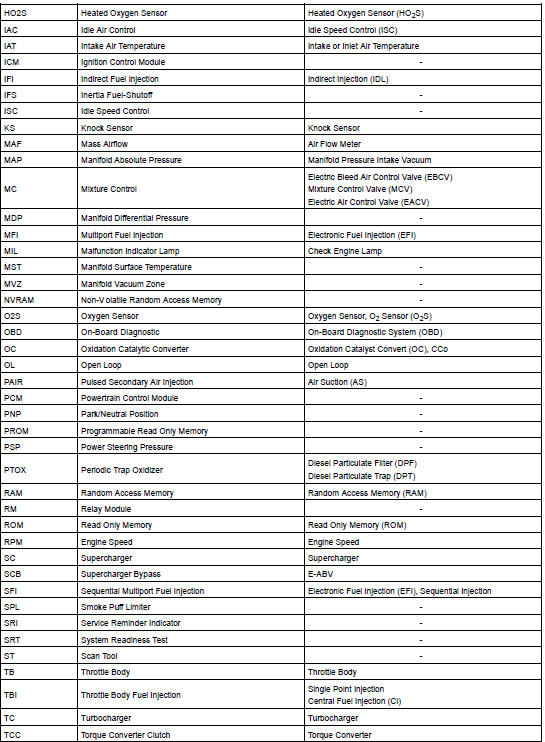

This glossary lists all SAE-J1930 terms and abbreviations used in this manual in compliance with SAE recommendations, as well as their TOYOTA equivalents.
Preparation
...
