Toyota Highlander Owners Manual: Gcwr, twr and unbraked twr
Confirm that the gross trailer weight, gross combination weight, gross vehicle weight, gross axle weight and tongue weight are all within the limits.

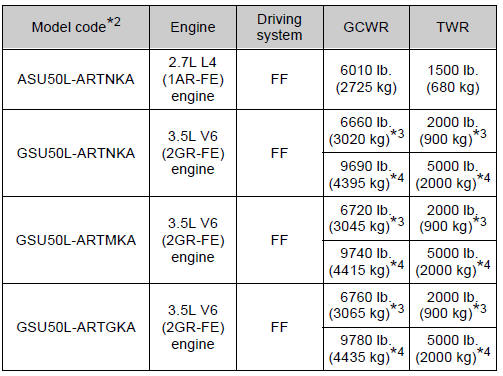

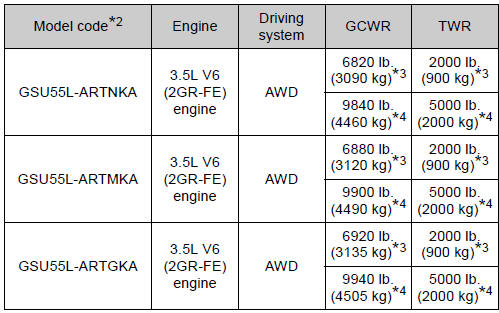

Gcwr*1 and twr*1
*1: These models meet the tow-vehicle trailering requirement of sae international per sae j2807.
*2: The model code is indicated on the certification label. *3: Without a towing package *4: with a towing package
Unbraked twr*1
1000 Lb. (450 Kg)
*1: These models meet the tow-vehicle trailering requirement of sae international per sae j2807.
*2: The model code is indicated on the certification label. *3: Without a towing package *4: with a towing package
