Toyota Highlander Owners Manual: Gauge and meters

Toyota Highlander Owners Manual / Instrument cluster / Gauge and meters

The displayed content may differ depending on the type of meter.

Vehicles with monochrome display

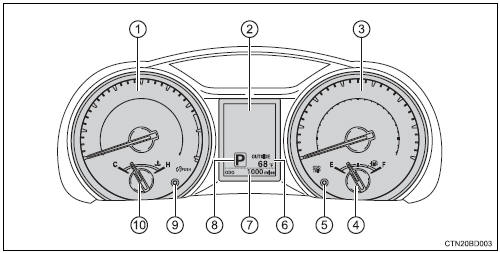

Toyota Highlander. Gauge and meters

Vehicles with color display

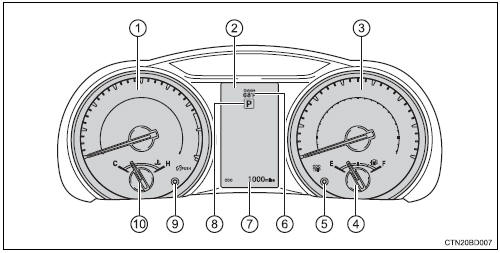

Toyota Highlander. Gauge and meters

Tachometer displays the engine speed in revolutions per minute.
Multi-information display presents the driver with a variety of driving-related data.
Speedometer
Fuel gauge
Trip meter reset knob switches the trip information.
Outside temperature odometer and trip meter display
Shift position and shift range displays the selected shift position or selected shift range.
Meter panel lights control button
Engine coolant temperature gauge displays the engine coolant temperature.

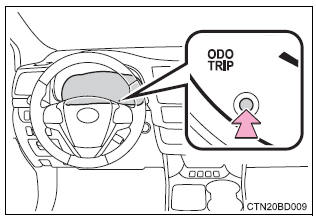

Changing the trip meter display

Switches between the trip meter “a” and “b” displays. When the trip meter is displayed, pressing and holding the knob will reset the trip meter.

Toyota Highlander. Changing the trip meter display

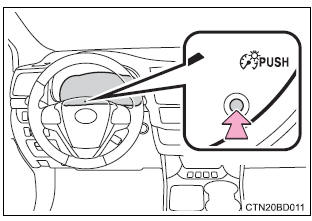

Instrument panel light control

The brightness of the meter panel lights can be adjusted.

Pressing the button will adjust the brightness of the meter panel lights.

The brightness level of the meters when the surroundings are bright (day mode) and dark (night mode) can be adjusted individually. However, when in day mode, adjusting the brightness level will also change the brightness level of night mode.

Toyota Highlander. Instrument panel light control

The meters and display illuminate when

vehicles without a smart key system

The engine switch is in the "on" position.

vehicles with a smart key system

The engine switch is in ignition on mode.

Outside temperature display

In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change.

When stopped, or driving at low speeds (less than 12 mph [20 km/h])
when the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)

Notice

To prevent damage to the engine and its components

Do not let the indicator needle of the tachometer enter the red zone, which indicates the maximum engine speed.
The engine may be overheating if the engine coolant temperature gauge is in the red zone (h). In this case, immediately stop the vehicle in a safe place, and check the engine after it has cooled completely.

Indicators

The indicators inform the driver of the operating state of the vehicle’s various systems. Turn signal indicator Headlight indicator Tail light indicator Headlight high beam indicator ...

Multi-information display (with monochrome display)

...
