Toyota Highlander Owners Manual: Air outlets

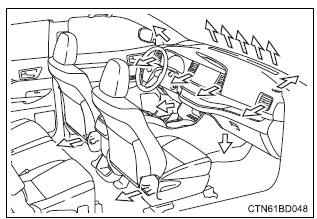

Location of air outlets
The air outlets and air volume
change according to the
selected airflow mode.
Adjusting the position of and opening and closing the air outlets

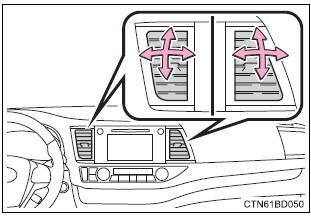

Direct air flow to the left or right,
up or down.

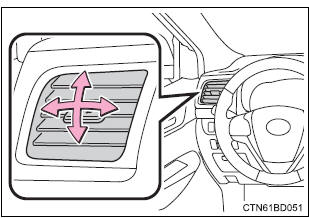

Direct air flow to the left or right,
up or down.

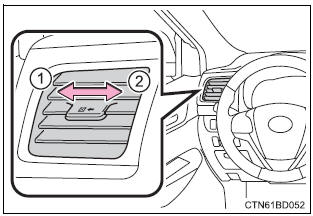

- Closes the vent
slide the knob to the most outward
position.
- Opens the vent
Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
Fogging up of the windows
Outside/recirculated air mode
- When driving on dusty roads such as tunnels or in heavy traffic, set the
outside/
recirculated air mode button to the recirculated air mode. This is effective
in preventing outside air from entering the vehicle interior. During
cooling operation, setting the recirculated air mode will also cool the
vehicle
interior effectively.
- Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
When the outside temperature exceeds 75°F (24°C) and the air
conditioning
system is on
- In order to reduce the air conditioning power consumption, the air
conditioning
system may switch to recirculated air mode automatically. This may also
reduce fuel consumption.
- Recirculated air mode is selected as a default mode when the engine
switch
is turned to the "on" position (vehicles without a smart key system) or
ignition
on mode (vehicles with a smart key system).
- It is possible to switch to outside air mode at any time by pressing
.
Ventilation and air conditioning odors
- To let fresh air in, set the air conditioning system to the outside air
mode.
- During use, various odors from inside and outside the vehicle may enter
into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
- To reduce potential odors from occurring:
- It is recommended that the air conditioning system be set to
outside air
mode prior to turning the vehicle off.
- The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in automatic
mode.
Air conditioning filter
Customization
Settings (e.G. A/c auto switch operation) can be changed.
(Customizable features )
Warning
To prevent the windshield from fogging up
- Do not use during
cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that
of the
windshield can cause the outer surface of the windshield to fog up,
blocking
your vision.
- Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.
To prevent burns
- Do not touch the rear view mirror surfaces when the outside rear
view mirror
defoggers are on.
- Do not touch the glass at lower part of the windshield or to the
side of the
front pillars when the windshield wiper de-icer is on.
|
Notice
To prevent battery discharge
Do not leave the air conditioning system on longer than necessary
when the
engine is stopped. |
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recirculated
air mode (indicator on) each time
is pressed.
Defo ...
