Toyota Highlander Service Manual: Registration

1. REGISTER TRANSMITTER CODE

HINT: The vehicle's garage door opener records transmitter codes for systems such as garage doors, gates, entry gates, door locks, home lighting systems, security systems or other transmitter-code based systems. The garage door opener is built into the dome lamp No. 1. If replacing the dome lamp No. 1, transmitter codes for any systems previously registered in the garage door opener must be re-registered.

(a) Re-register systems in the garage door opener registration mode.

NOTICE:

HINT:

REGISTER TRANSMITTER CODE


  1.  Select a garage door opener switch for transmitter code registration.
  2.  Press and hold the selected switch for 20 seconds.

    The garage door opener will enter registration mode.

HINT: Before entering registration mode, the LED is ON. After entering registration mode, the LED flashes at a cycle of 1 Hz. For a "rolling code" type system, after entering registration mode, the LED flashes at a cycle of 8.8 Hz for 1.6 seconds, and then the LED flashes at a cycle of 1 Hz.

REGISTER TRANSMITTER CODE


  1. After the garage door opener has entered registration mode, bring the original transmitter of the system to be registered within 1 to 3 inches of the garage door opener and press and hold one of the garage door opener switches. Then press the original transmitter switch.
  2. If the transmitter code registration was successful, the LED of the garage door opener flashes at a cycle of 5.6 Hz. If no malfunction occurs, release both the garage door opener switch and the original transmitter switch.

HINT:

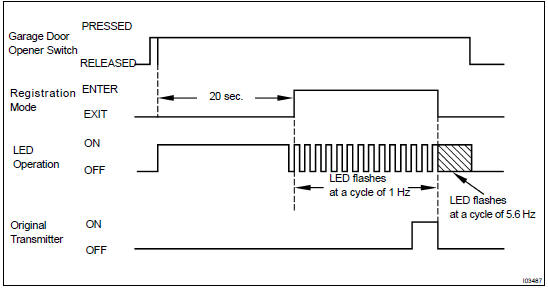

Timing Chart of Registration Mode:

Timing Chart of Registration Mode


Timing Chart of Registration Mode


(b) Erase transmitter codes in the garage door opener clear mode.

HINT:

  1.  Press and hold the left and right switch of the garage door opener for 20 seconds. The LED will begin to flash at a cycle of 5.6 Hz. Releasing the switches will end clear mode.

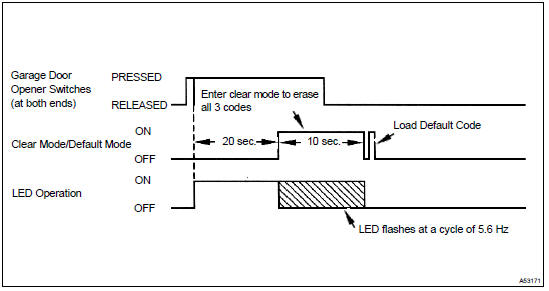

Timing Chart of Clear Mode:

Timing Chart of Clear Mode


(c) Low power mode:

  1.  If a garage door opener switch is held for 75 seconds or more, the garage door opener will enter low power mode to economize on power consumption. When the garage door opener has entered low power mode, the LED turns off.
