Toyota Highlander Service Manual: Components

Components

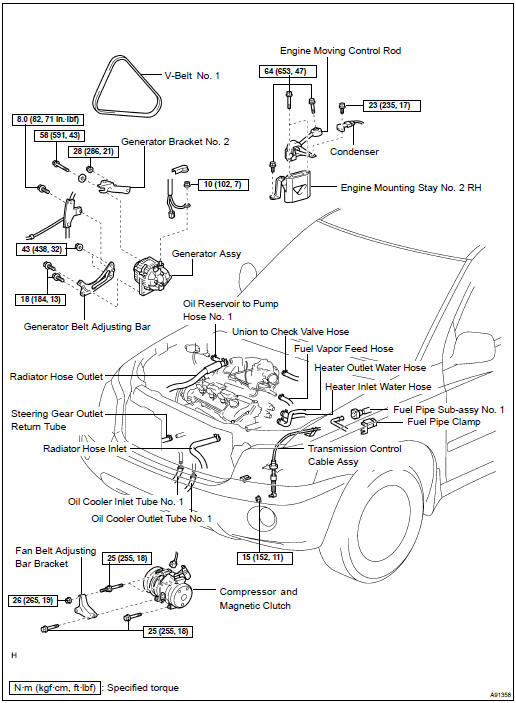

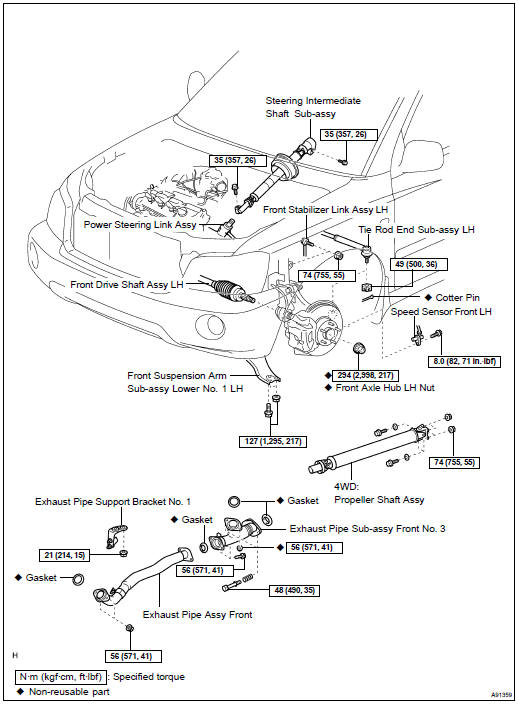

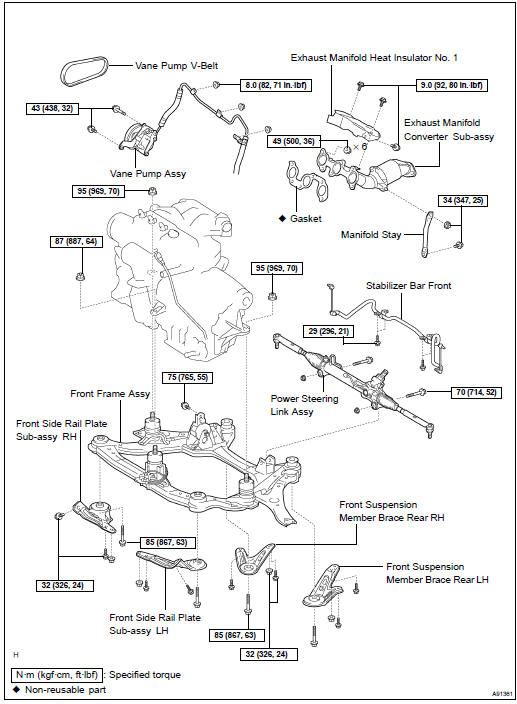

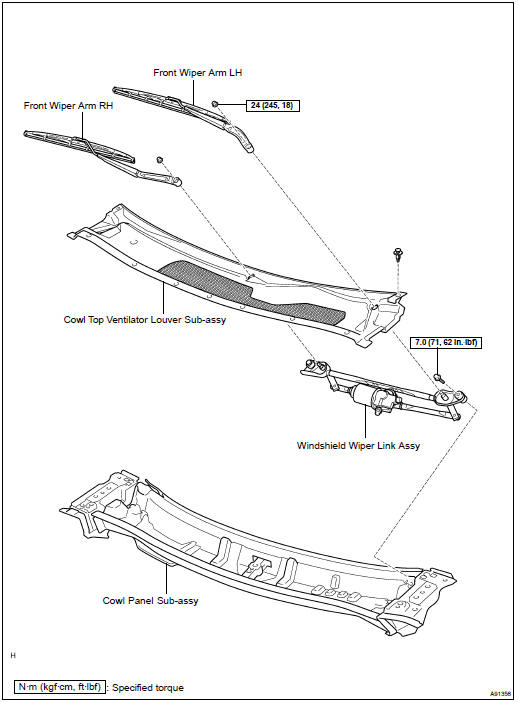

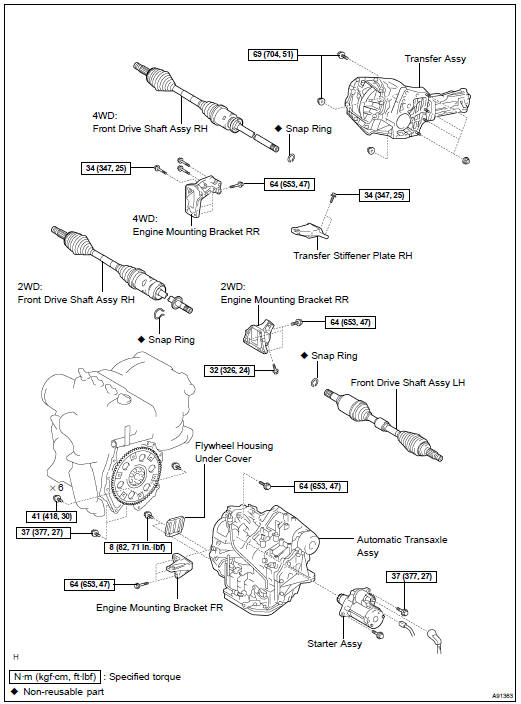

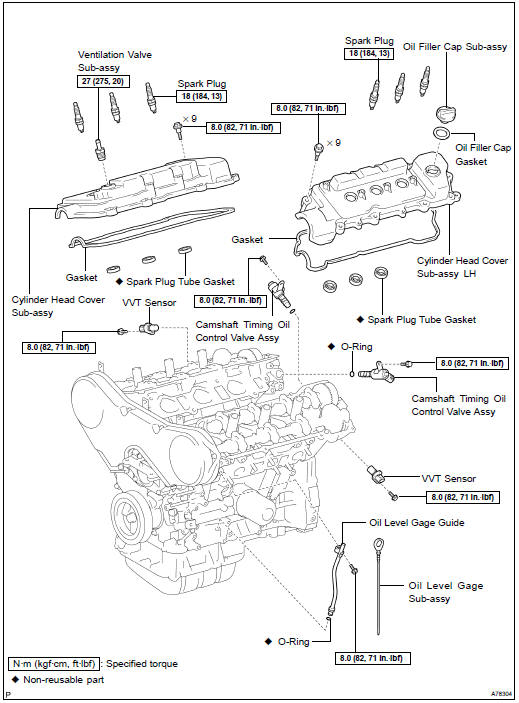

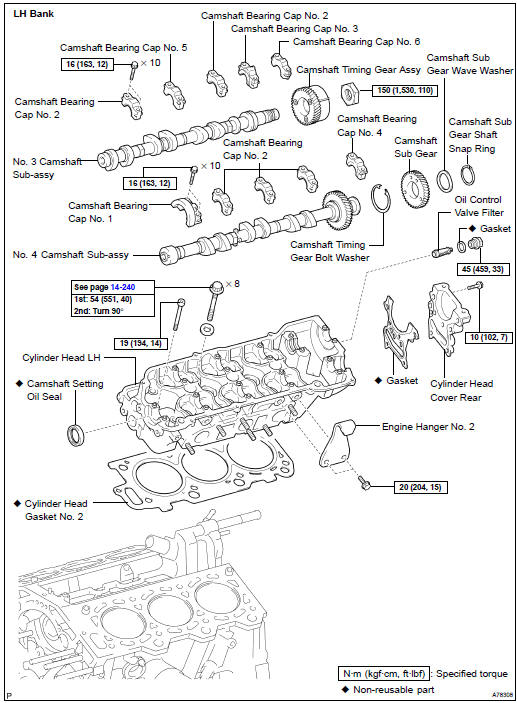

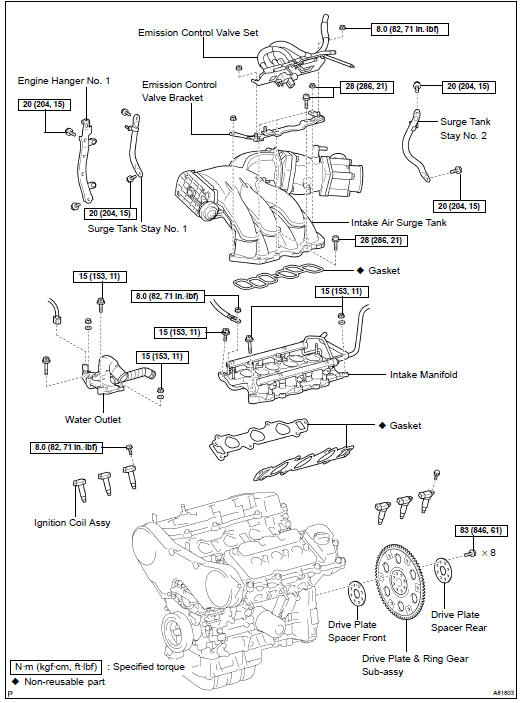

Partial engine ASSY (3MZ-FE)
...

Replacement

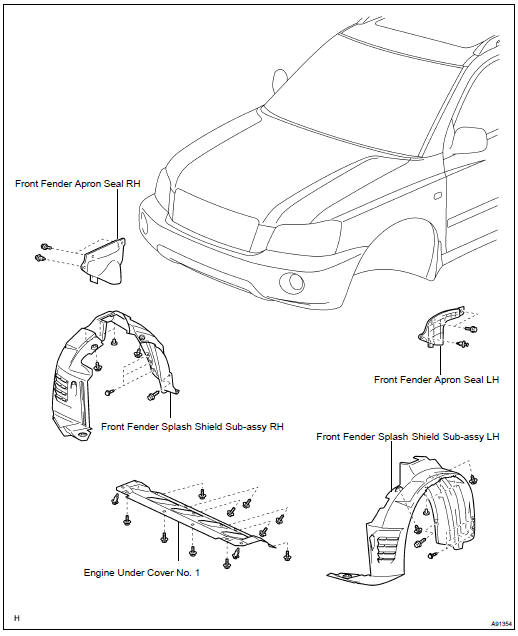

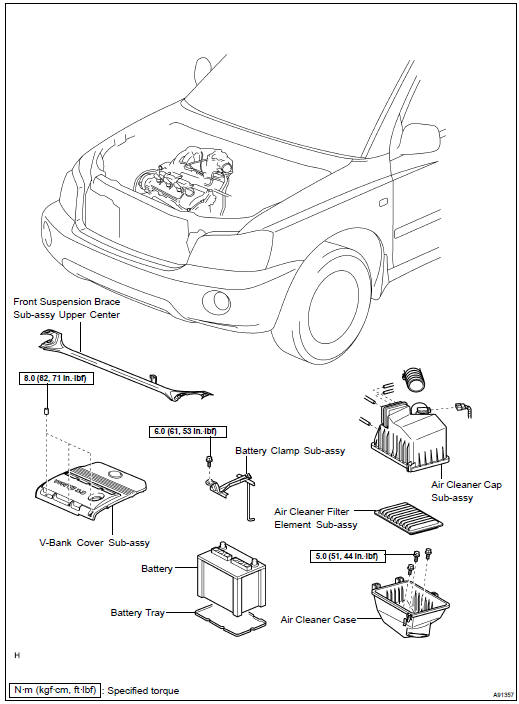

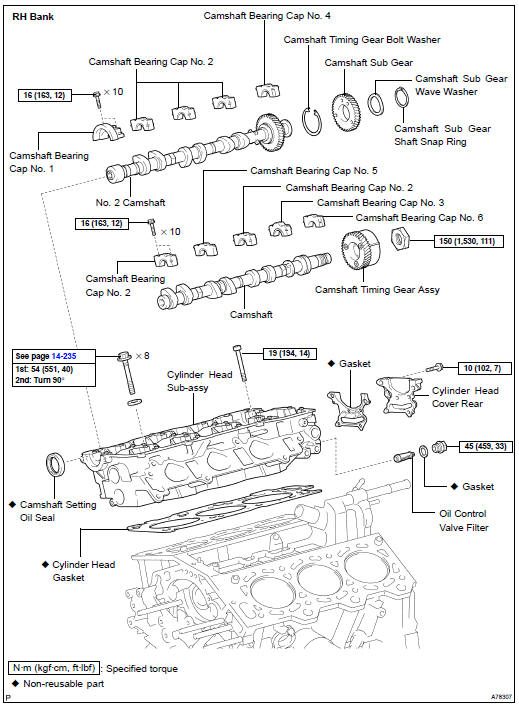

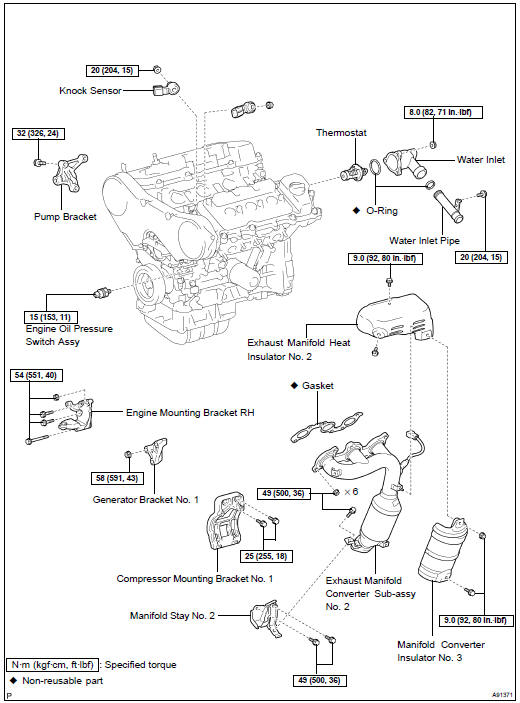

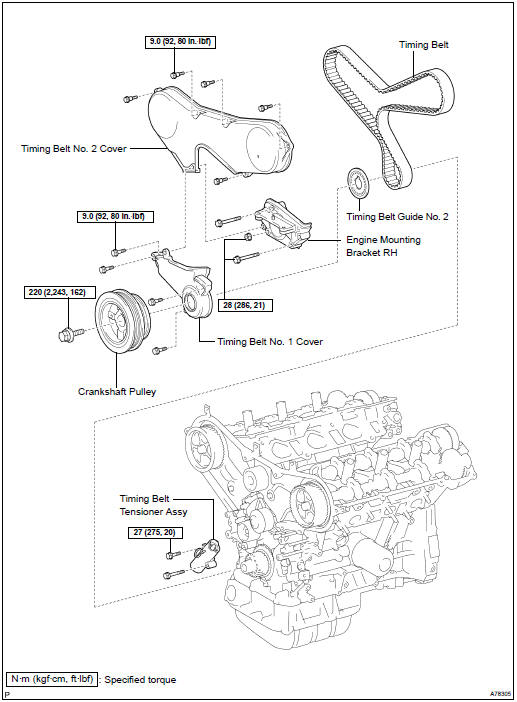

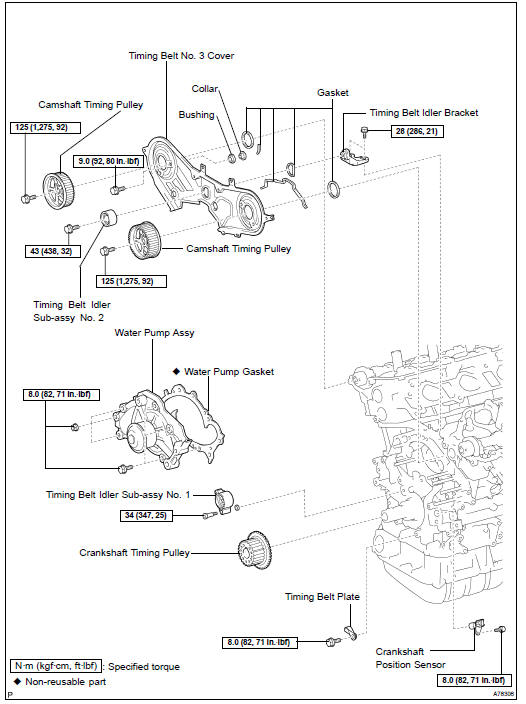

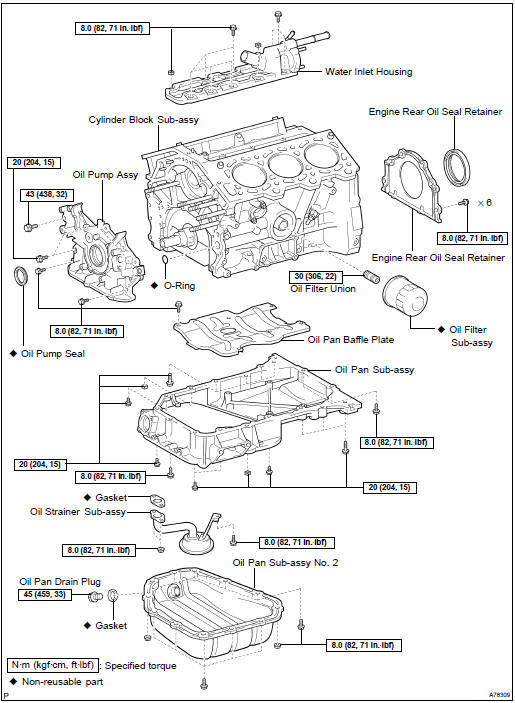

1. WORK FOR PREVENTING GASOLINE FROM SPILLING OUT (See page 11-35 ) 2. REMOVE FRONT WHEELS 3. REMOVE ENGINE UNDER COVER NO.1 4. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSY LH 5. REMOVE FRONT FENDER ...

More about Toyota Highlander:

Overhaul
1. REMOVE DRAIN PLUG (a) Remove the drain plug. (b) Remove the O-ring. 2. ASSEMBLE SST SST 09230-01010 (a) Install the claw to the overhaul handle, inserting it in the hole in part A as shown in the illustration. (b) While gripping the handle, adjust the stopper bolt so that dimension B ...
