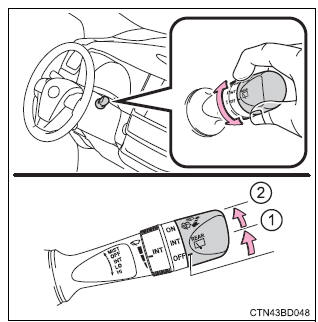

Operating the wiper lever
The wiper operation is selected by moving the lever as follows:
*1: For u.S.A.
*2: For canada

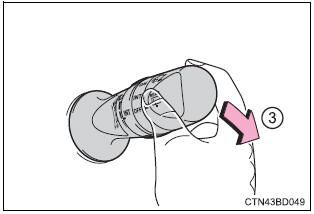

The wiper will automatically operate a couple of times after the washer squirts.
The rear window wiper and washer can be operated when
Vehicles with a smart key system: the engine switch is in ignition on mode.
If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the washer fluid reservoir.
![]()
Do not use the wiper, as it may damage the rear window. When the washer fluid tank is empty Do not operate the switch continually as the washer fluid pump may overheat. When a nozzle becomes blocked In this case, contact your toyota dealer. Do not try to clear it with a pin or other object. The nozzle will be damaged. |
Replacement
HINT:
The installation procedures are the removal procedures in reverse order.
However, only installation procedures
requiring additional information are included.
1. DRAIN ENGINE COOLANT (See page 16-26 )
2. DISCONNECT RADIATOR RESERVE TANK HOSE OR PIPE
3. DISCONNECT RADIATOR HOSE INLET
4. ...
