Toyota Highlander Owners Manual: Windshield wipers and washer

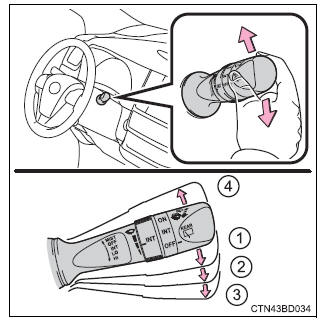

Operating the wiper lever

The wiper operation is selected by moving the lever as follows.

  1. *1 Or
    *2 Intermittent windshield
    wiper operation
  2. *1 Or
    *2 Low speed windshield
    wiper operation
  3. *1 Or
    *2 High speed windshield
    wiper operation
  4. *1 Or
    *2 V

Toyota Highlander. Operating the wiper lever


*1: For u.S.A.

*2: For canada

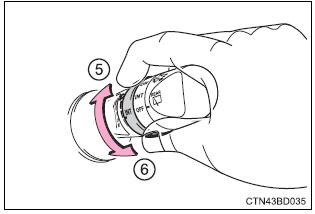

Wiper intervals can be adjusted when intermittent operation is selected.

  1. Increases the intermittent windshield wiper frequency
  2. decreases the intermittent windshield wiper frequency

Toyota Highlander. Operating the wiper lever

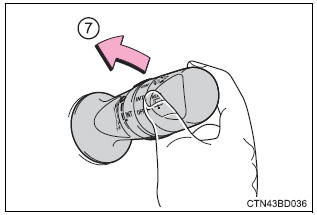

  1. Washer/wiper dual operation

Wipers will automatically operate a couple of times after the washer squirts.

Toyota Highlander. Operating the wiper lever


The windshield wiper and washer can be operated when

If no windshield washer fluid sprays

Check that the washer nozzles are not blocked if there is washer fluid in the windshield washer fluid reservoir.

Warning


Caution regarding the use of washer fluid

When it is cold, do not use the washer fluid until the windshield becomes warm. The fluid may freeze on the windshield and cause low visibility. This may lead to an accident, resulting in death or serious injury.



Notice


?When the windshield is dry

Do not use the wipers, as they may damage the windshield.

When the washer fluid tank is empty

Do not operate the switch continually as the washer fluid pump may overheat.

When a nozzle becomes blocked

In this case, contact your toyota dealer.

Do not try to clear it with a pin or other object. The nozzle will be damaged.

Fog light switch
The fog lights secure excellent visibility in difficult driving conditions, such as in rain and fog. *1 Or   *2 Turns the front fog lights off Turns the front fog lights on ...

Rear window wiper and washer
Operating the wiper lever The wiper operation is selected by moving the lever as follows: *1 Or *2 Intermittent window wiper operation *1 Or *2 Normal window wiper operation *1 ...
