Toyota Highlander Owners Manual: Programming the homelink

The homelink® compatible transceiver in your vehicle has 3 buttons which can be programmed to operate 3 different devices. Refer to the programming method below appropriate for the device.

  1. Buttons
  2. Homelink® indicator light
  3. Garage door operation indicators

Toyota Highlander. Programming the homelink


Before programming homelink

Programming homelink

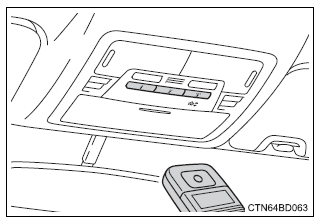

  1. Point the remote control transmitter for the device 1 to 3 in. (25 To 75 mm) from the homelink® buttons.

    Keep the homelink® indicator light in view while programming.

Toyota Highlander. Programming homelink

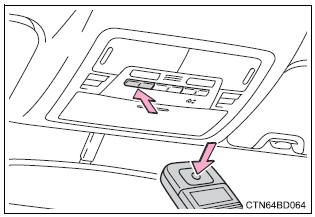

  1. Press and hold the homelink® button you want to program and the handheld transmitter button simultaneously.

    When the homelink® indicator light changes from slowly flashing orange to rapidly flashing green (rolling code) or continuously lit green (fixed code), release both buttons.

Toyota Highlander. Programming homelink


  1. With one hand, press and hold the homelink® button you want to program. With your other hand, press and release the remote control transmitter every 2 seconds and repeat this cycle until the homelink® indicator light starts to flash rapidly. Then, release the buttons.
  2. Test the homelinkr operation by pressing the newly programmed button and observing the indicator light:
  1. Repeat the steps above to program another device for any of the remaining homelinkr buttons.

Programming a rolling code system

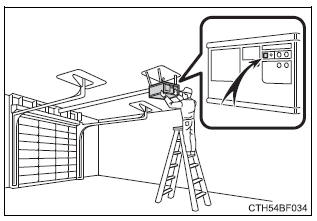

  1. Locate the “learn” or “smart” button on the garage door opener motor in the garage.

    This button can usually be found where the hanging antenna wire is attached to the unit. The name and color of the button may vary by manufacturer.

    Please refer to the owner’s manual supplied with the garage door opener motor for details.

Toyota Highlander. Programming a rolling code system

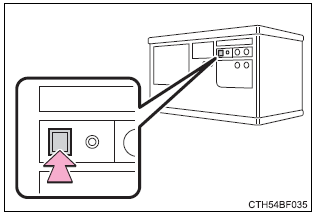

  1. Press and release the “learn” or “smart” button.

    Perform 3 within 30 seconds after performing 2.

Toyota Highlander. Programming a rolling code system

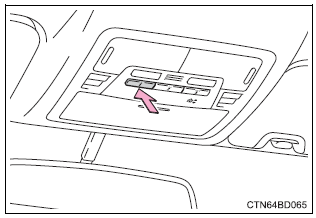

  1. Press and hold the programmed homelink® button (located inside the vehicle) for 2 seconds and release it.

    Repeat this sequence (press/ hold/release) up to 3 times to complete programming.

    If the garage door opener motor activates when the homelink® button is pressed, the garage door opener motor recognizes the homelink® signal.

Toyota Highlander. Programming a rolling code system


Enabling 2-way communication with a garage door (only available for compatible devices)

When enabled, 2-way communication allows you to check the status of the opening and closing of the garage door through indicators in your vehicle.

2-Way communication is only available if the garage door opener motor used is a compatible device. (To check device compatibility, refer to the owner's manual supplied with the garage door opener motor.)

  1. Press a programmed homelinkr button to operate a garage door.
  2. Within 1 minute of pressing the homelinkr button, after the garage door operation has stopped, press the "learn" or "smart" button on the garage door opener motor. Within 5 seconds of the establishment of 2-way communication with the garage door opener, both garage door operation indicators in the vehicle will flash rapidly (green).

 Reprogramming a single homelinkr button

When the following procedure is performed, buttons which already have devices registered to them can be overwritten:

  1. With one hand, press and hold the desired homelink® button.
  2. When the homelink® indicator starts flashing, continue to hold the homelink® button and perform “programming homelink®” from 1 (it takes 20 seconds for the homelink® indicator to start flashing).

Operating homelink

Press the appropriate homelink® button. The homelink® indicator light should turn on.

Garage door opener
The garage door opener can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, security systems, and other devices. The garage door opener (homelink„µ univ ...

Garage door operation indicators
The status of the opening and closing of a garage door is shown by the indicators. Opening Closing This function is only available if the garage door opener motor used is a compatible ...
