Toyota Highlander Owners Manual: Garage door operation indicators

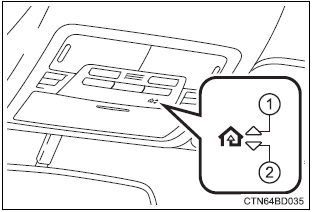

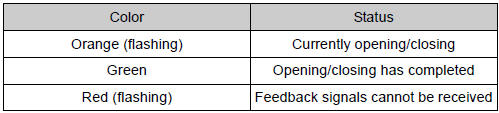

The status of the opening and closing of a garage door is shown by the indicators.
- Opening
- Closing
This function is only available if the garage door opener motor used is a compatible device. (To check device compatibility, refer to the owner’s manual supplied with the garage door opener motor.)
The indicators can operate within approximately 820 ft. (250 M) of the garage door. However, if there are obstacles between the garage door and the vehicle, such as houses and trees, feedback signals from the garage door may not be received.
To recall the previous door operation status, press and release either homelink® buttons “1” and “2” or “2” and “3” simultaneously for 2 seconds.
The last recorded status will be displayed for 5 seconds.
