Toyota Highlander Service Manual: Parking brake cable ASSY NO.1

Toyota Highlander Service Manual / Parking brake / Parking brake cable ASSY NO.1

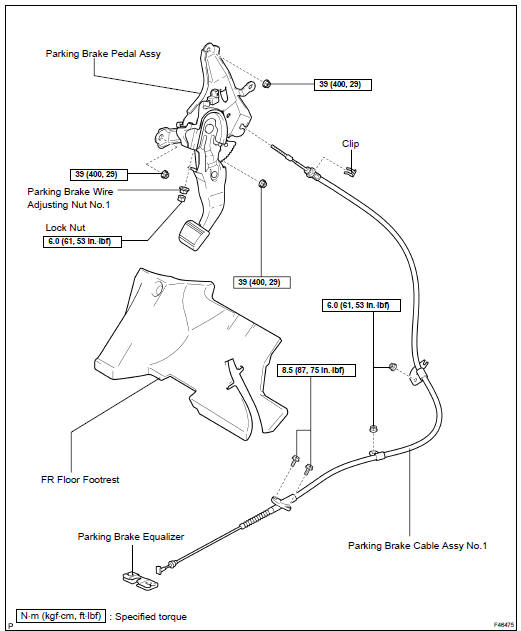

COMPONENTS

COMPONENTS


REPLACEMENT

1. PRECAUTION (W/ SIDE AIRBAG) (SEE PAGE 60-1 )

2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE PAGE 60-1 )

3. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER (SEE PAGE 71-10 )

4. REMOVE INSTRUMENT PNL INSERT SUB-ASSY LWR LH (SEE PAGE 71-10 )

5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (SEE PAGE 71-10 )

6. REMOVE FLOOR CARPET COVER CENTER RH (SEE PAGE 71-10 )

7. REMOVE FLOOR CARPET COVER CENTER LH (SEE PAGE 71-10 )

8. REMOVE FRONT SEAT ASSEMBLY RH

9. REMOVE FRONT SEAT ASSEMBLY LH (SEE PAGE 72-1 1, 72-19 )

10. REMOVE CONSOLE BOX ASSY (SEE PAGE 71-10 )

11. REMOVE FR FLOOR FOOTREST (SEE PAGE 33-5 )

12. REMOVE PARKING BRAKE CONTROL PEDAL ASSY (SEE PAGE 33-5 )

13. REMOVE PARKING BRAKE CABLE ASSY NO.1

REMOVE PARKING BRAKE CABLE ASSY NO.1


(a) Using a screwdriver, disengage the claw.

NOTICE: Be careful not to damage the parking brake cable assy No.1.

REMOVE PARKING BRAKE CABLE ASSY NO.1


(b) Remove the clip from the parking brake pedal assy.

(c) Remove the lock nut and parking brake wire adjusting nut No.1.

14. INSTALL PARKING BRAKE CABLE ASSY NO.1

INSTALL PARKING BRAKE CABLE ASSY NO.1


(a) Install the parking brake cable assy No.1 with the clip.

(b) Temporarily install the parking brake wire adjusting nut No.1 and lock nut.

INSTALL PARKING BRAKE CABLE ASSY NO.1


(c) Bend the claw.

NOTICE: Bend the claw fully.

15. INSTALL PARKING BRAKE CONTROL PEDAL ASSY (SEE PAGE 33-5 )

16. INSTALL FR FLOOR FOOTREST (SEE PAGE 33-5 )

17. INSTALL FRONT SEAT ASSEMBLY RH

18. INSTALL FRONT SEAT ASSEMBLY LH (SEE PAGE 72-1 1, 72-19 )

19. REMOVE REAR WHEEL

20. ADJUST PARKING BRAKE SHOE CLEARANCE (SEE PAGE 33-19 )

21. INSTALL REAR WHEEL

Torque: 103 NVm (1,050 kgfVcm, 76 ftVlbf)

22. INSPECT PARKING BRAKE PEDAL TRAVEL (SEE PAGE 33-2 )

23. ADJUST PARKING BRAKE PEDAL TRAVEL (SEE PAGE 33-2 )

24. CONNECT BATTERY NEGATIVE TERMINAL

25. INSPECT SRS WARNING LIGHT (W/ SIDE AIRBAG) (SEE PAGE 05-1207 )
