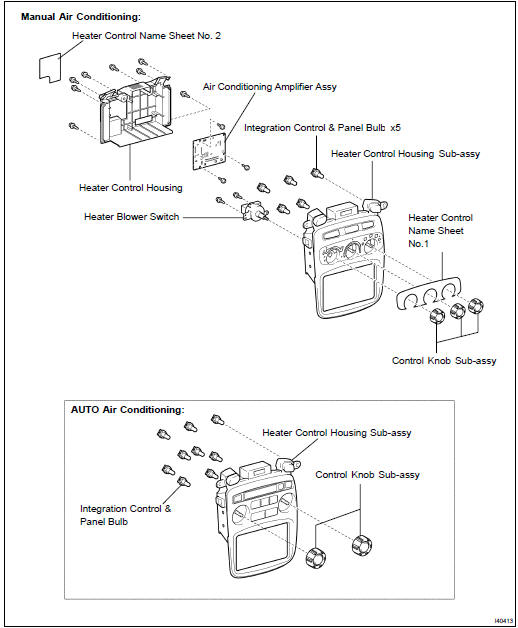

COMPONENTS

COMPONENTS


OVERHAUL

HINT: COMPONENTS: see page 55-25

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE PAGE 71-10 )

2. REMOVE INTEGRATION CONTROL & PANEL ASSY (SEE PAGE 71-10 )

3. REMOVE RADIO RECEIVER ASSY (SEE PAGE 71-10 )

4. REMOVE CONTROL KNOB SUB-ASSY

5. REMOVE HEATER CONTROL NAME SHEET NO.1 (MANUAL AIR CONDITIONING)

6. REMOVE HEATER CONTROL NAME SHEET NO.2

REMOVE HEATER CONTROL NAME SHEET NO.2


(a) Using a screwdriver protected by taping, remove the heater control name sheet No. 2.

7. REMOVE HEATER CONTROL HOUSING SUB-ASSY

REMOVE HEATER CONTROL HOUSING SUB-ASSY


(a) Release the lock of connector and disconnect the cable.

(b) Remove the 8 screws and heater control housing.

8. REMOVE AIRCONDITIONER AMPLIFIER ASSY

REMOVE AIRCONDITIONER AMPLIFIER ASSY


(a) Remove the 3 screws and air conditioner amplifier assy from the heater control housing.

9. REMOVE HEATER BLOWER SWITCH (MANUAL AIR CONDITIONING)

Adjustment
1. ADJUST V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (a) Loosen bolt A. (b) Loosen bolt B. (c) Apply drive belt tension by turning bolt C. Drive belt tension: New belt: 160 to 180 l ...

Air conditioning radiator ASSY
COMPONENTS OVERHAUL HINT: COMPONENTS: see page 55-27 ,71-6 1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (SEE PAGE 55-17 ) SST 07110-58060 (07117-58080, 07117-58090, 07117-78050, 07117-8 ...
