Toyota Highlander Service Manual: Engine mechanical

PREPARATION

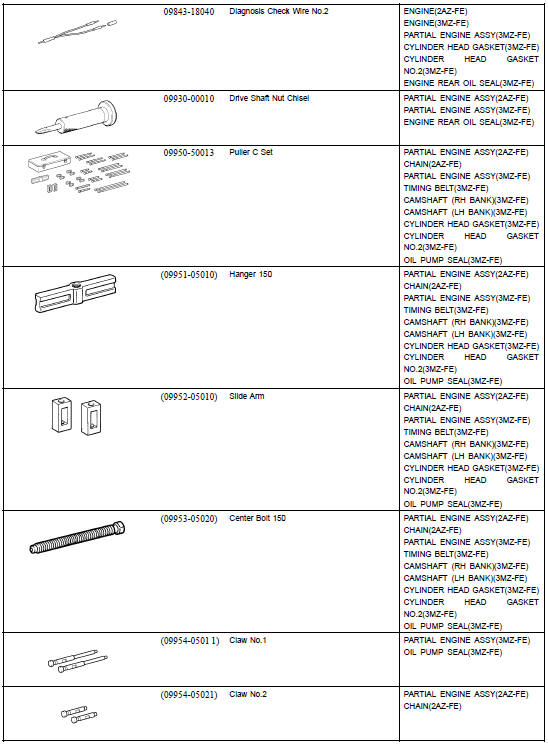

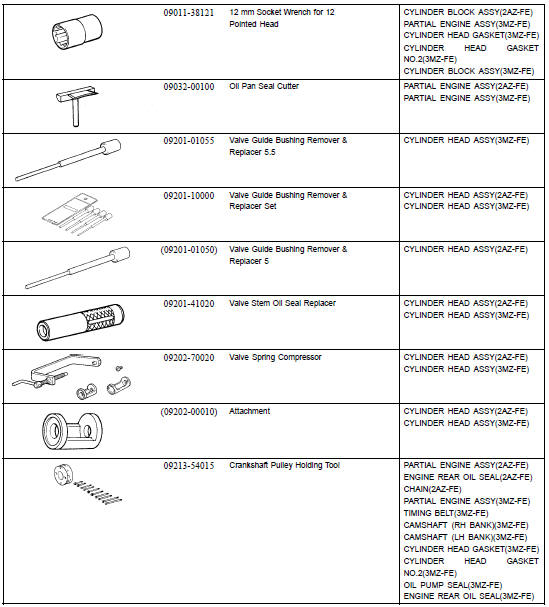

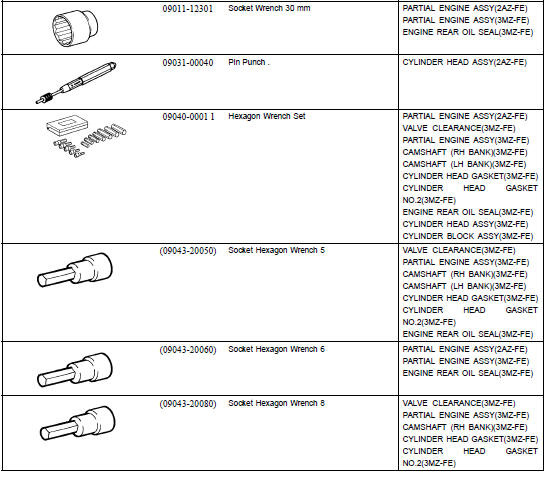

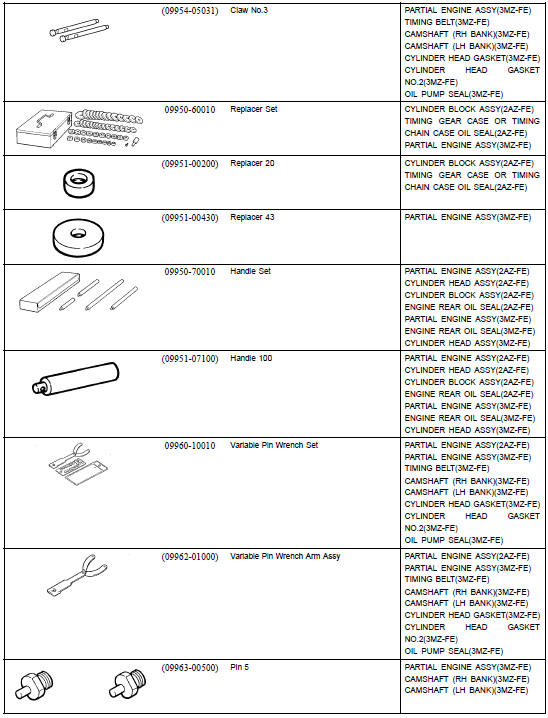

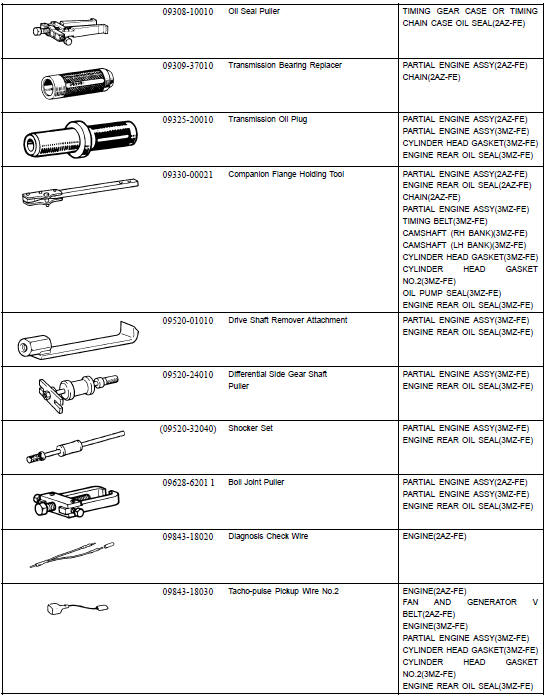

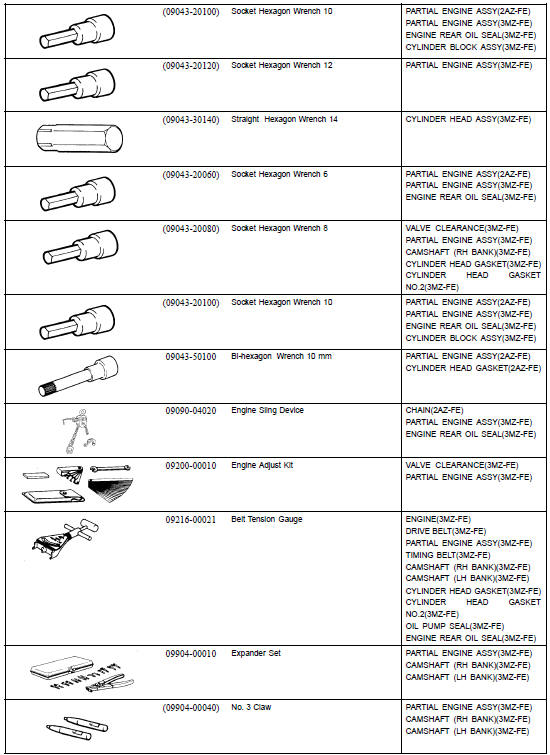

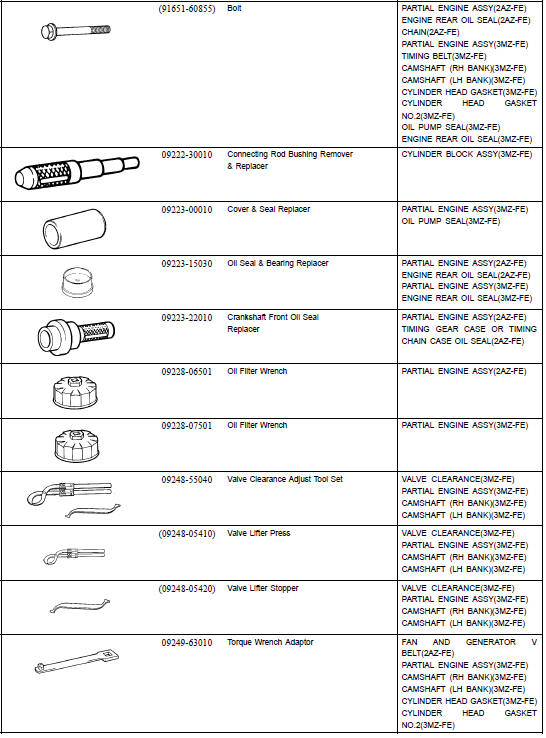

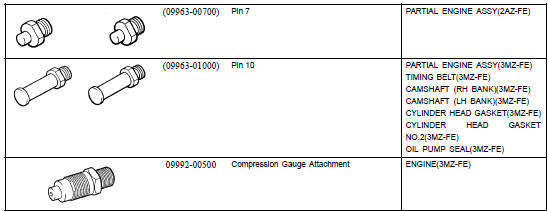

SST

Engine mechanical


Engine mechanical


Engine mechanical


Engine mechanical


Engine mechanical


Engine mechanical


Recomended Tools

Engine mechanical


Engine mechanical

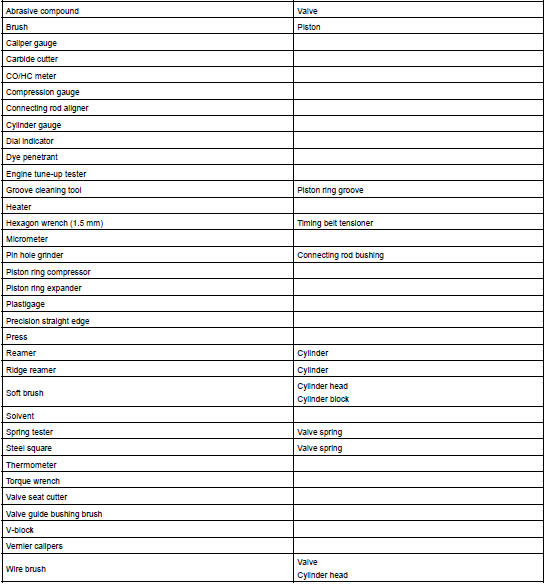

Equipment

Engine mechanical

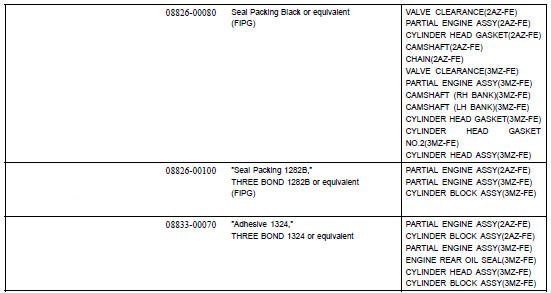

SSM

Engine mechanical


EXHAUST

PREPARATION

Equipment

EXHAUST


Emission control
PREPARATION Recomended Tools Equipment SSM INTAKE PREPARATION Equipment ...

Cooling
PREPARATION SST Recomended Tools Equipment SSM ...
