Toyota Highlander Owners Manual: Console box

Toyota Highlander Owners Manual / Interior features / Using the storage features / List of storage features / Console box

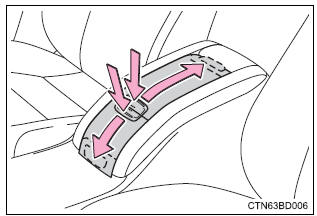

To open the console box lids, press on the knob and slide both lids.

Toyota Highlander. Console box

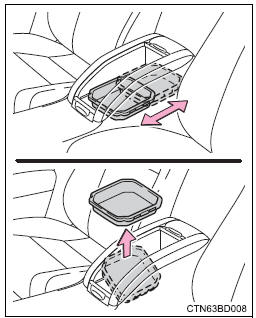

Tray in the console box

The tray slides forward/backward and can be removed.

Toyota Highlander. Tray in the console box
