Toyota Highlander Service Manual: Components

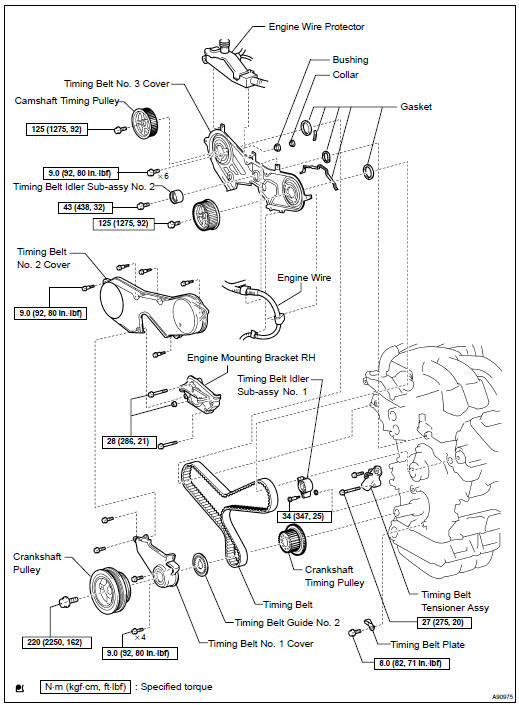

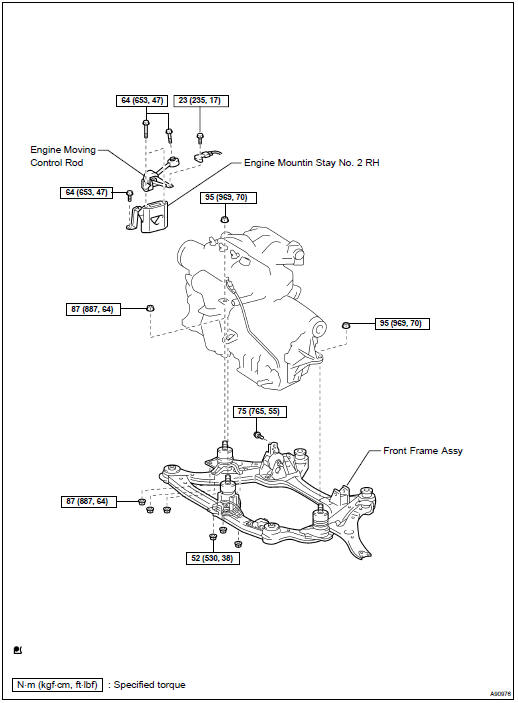

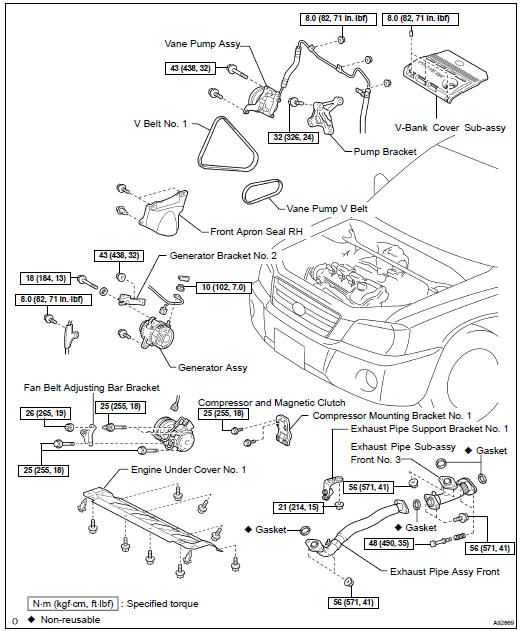

Components


Components


Components


Components


Components

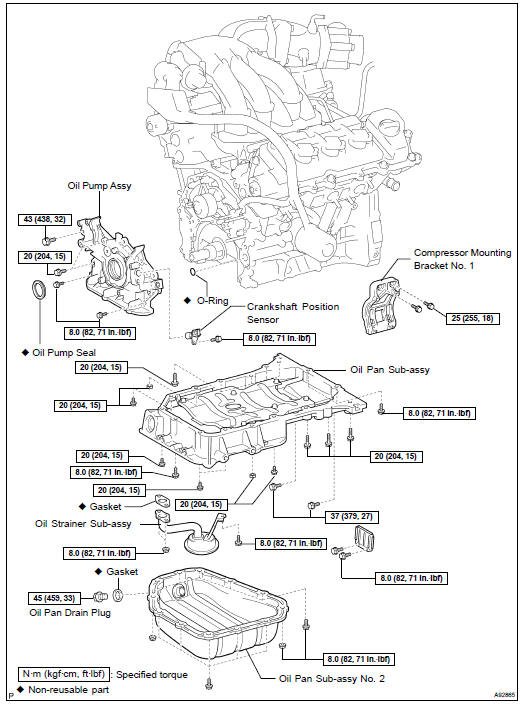

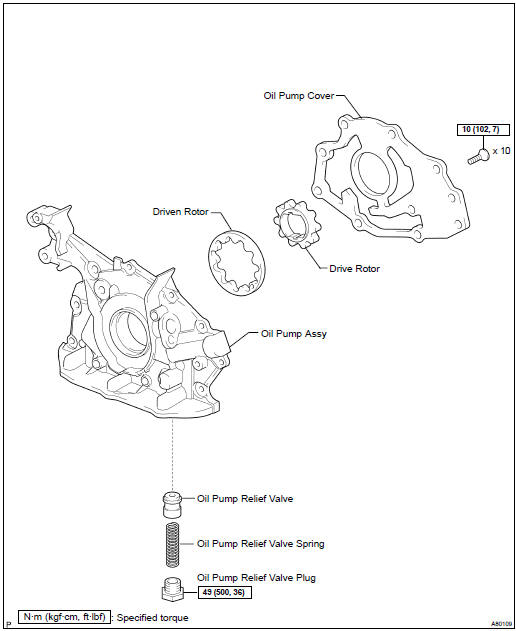

Oil pump ASSY (3MZ-FE)
...

Replacement
1. REMOVE FRONT WHEEL 2. REMOVE ENGINE UNDER COVER NO.1 3. REMOVE FRONT FENDER APRON SEAL RH 4. DRAIN ENGINE OIL (a) Install a new gasket after draining engine oil. Torque: 45 NVm (459 kgfVcm, ...

More about Toyota Highlander:

Rear axle carrier sub-ASSY LH (4WD)
REPLACEMENT HINT: COMPONENTS: SEE PAGE 30-4 Replace the RH side using the same procedures as for the LH side. 1. REMOVE REAR WHEEL 2. SEPARATE SPEED SENSOR REAR LH (a) Remove the bolt and separate the speed sensor from the axle carrier. NOTICE:Be careful not to damage the speed sensor. Pre ...
