Toyota Highlander Service Manual: Components

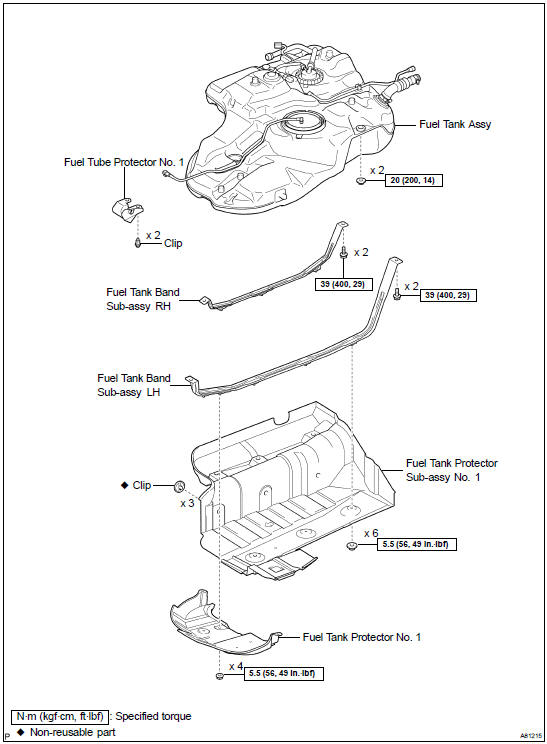

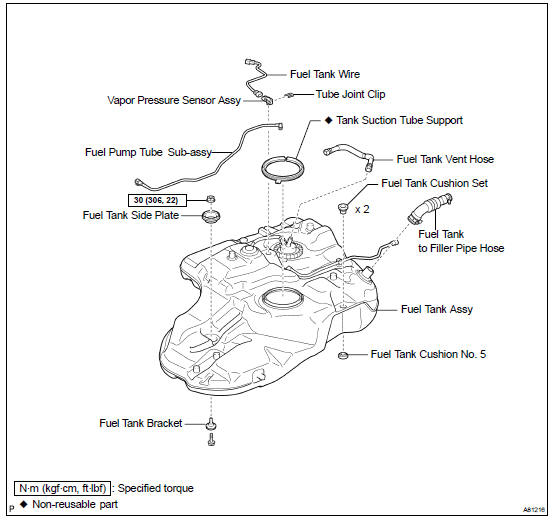

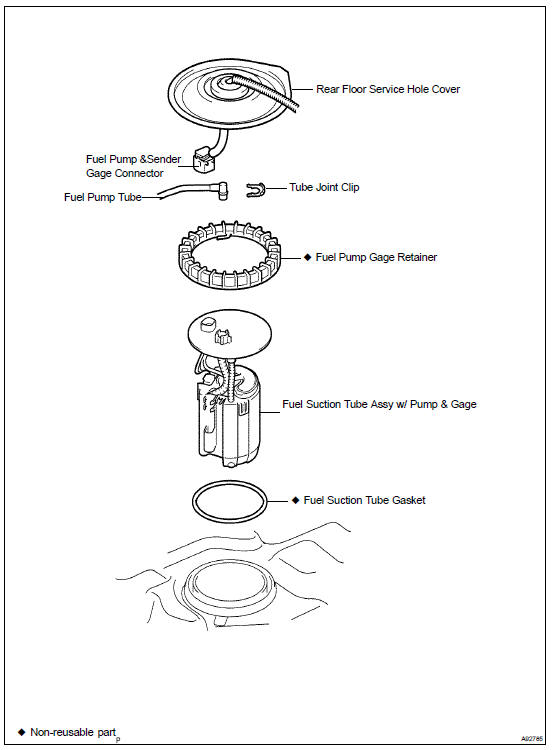

Fuel tank assy (3mz-fe)


Fuel tank assy (3mz-fe)


Fuel tank assy (3mz-fe)


Fuel tank assy (3mz-fe)


Fuel tank assy (3mz-fe)


Fuel tank assy (3mz-fe)


Fuel tank ASSY (3MZ-FE)
...

Replacement

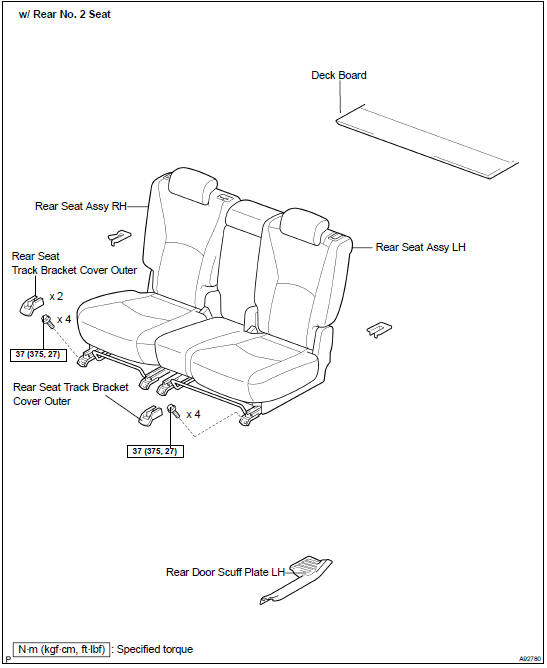

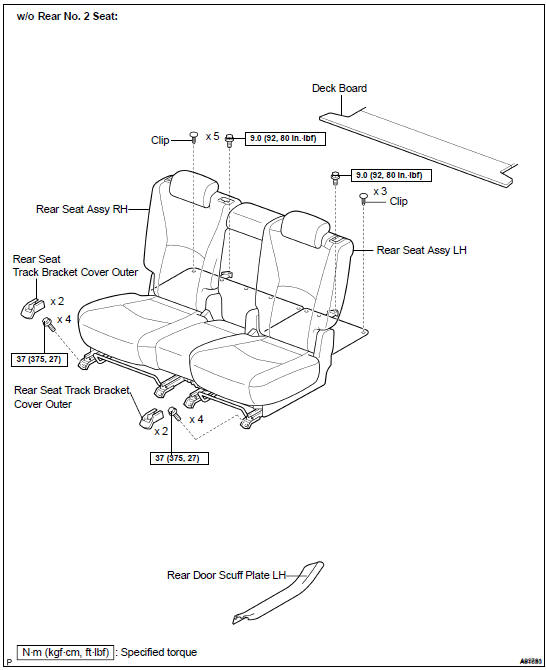

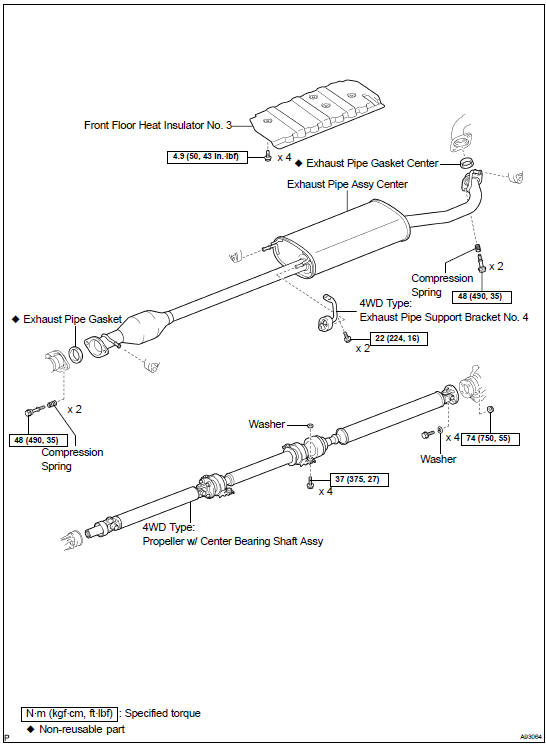

1. DISCHARGE FUEL SYSTEM PRESSURE (See page 11-35 ) 2. REMOVE DECK BOARD SUB-ASSY 3. REMOVE REAR SEAT TRACK BRACKET COVER OUTER 4. REMOVE REAR SEAT ASSY RH (See page 72-35 ) 5. REMOVE REAR SEAT AS ...

More about Toyota Highlander:

Disposal
HINT: When scrapping a vehicle equipped with the SRS or disposing of the horn button assy, be sure to deploy the airbag first in accordance with the procedure described below. If any abnormality occurs with the airbag deployment, contact the SERVICE DEPT. of TOYOTA MOTOR SALES, U.S.A., INC. ...
