Fuel pump assy (2az-fe)


Fuel pump assy (2az-fe)


Fuel pump assy (2az-fe)


Fuel pump assy (2az-fe)

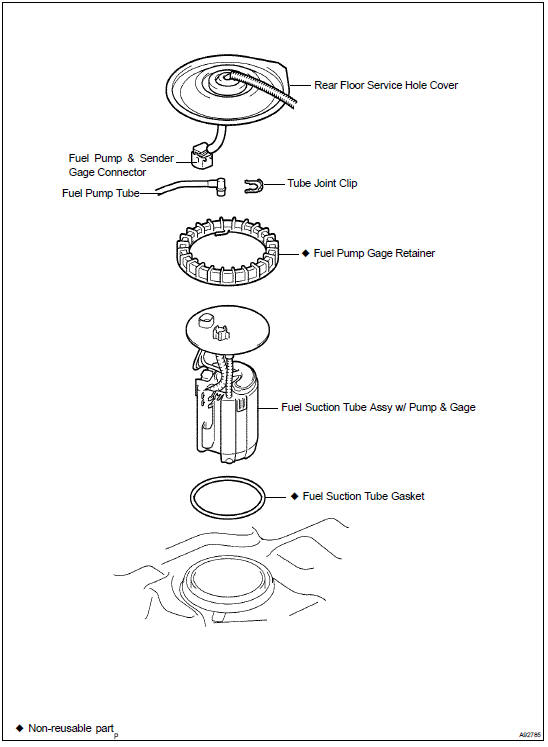

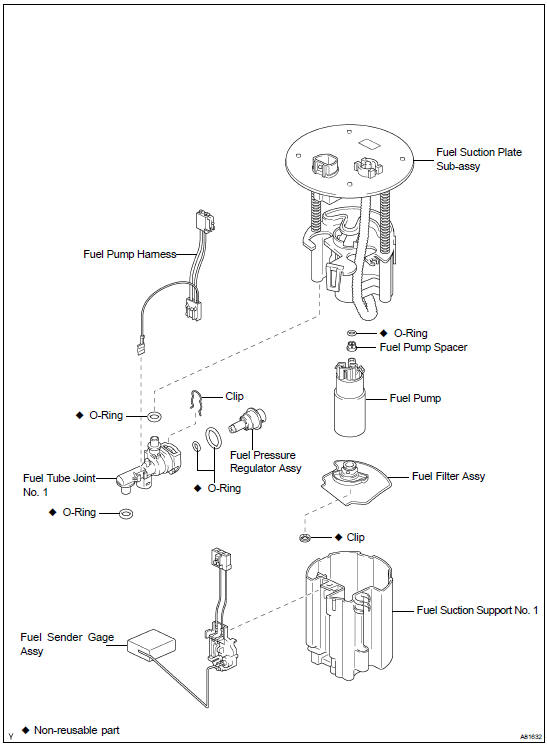

Fuel pump ASSY (2AZ-FE)
...

Replacement

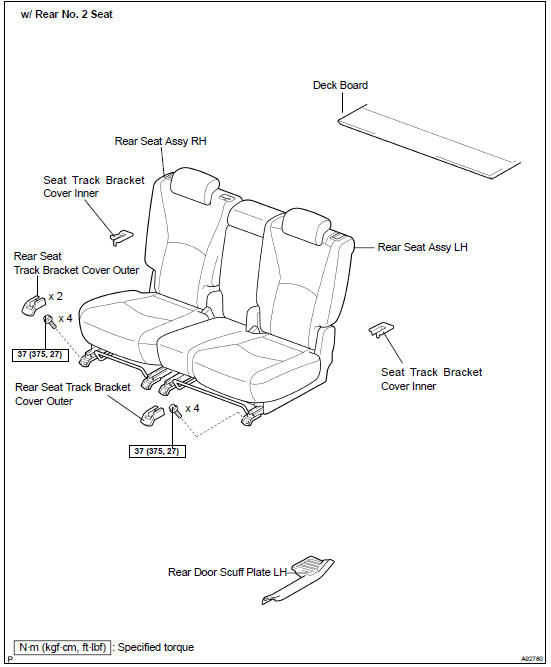

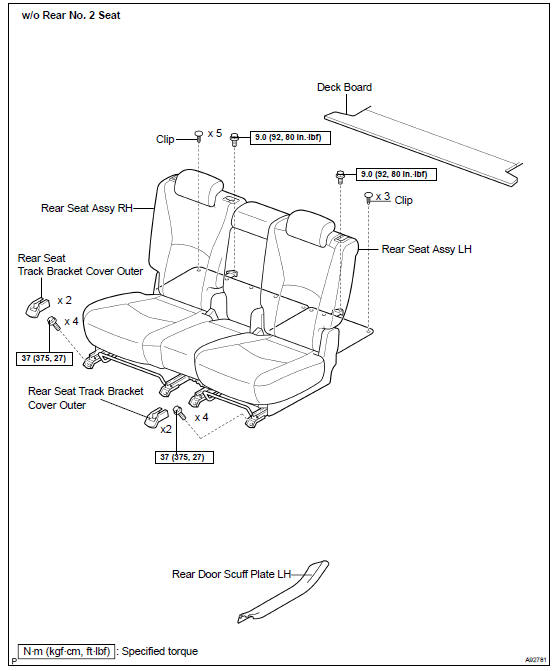

1. DISCHARGE FUEL SYSTEM PRESSURE (See page 11-1 ) 2. REMOVE DECK BOARD SUB-ASSY (a) Disengage the 5 clips and turn up the front side of the deck board. 3. REMOVE REAR SEAT TRACK BRACKET COVER ...
