Toyota Highlander Owners Manual: Bulb locations

Toyota Highlander Owners Manual / Maintenance and care / Do-it-yourself maintenance / Light bulbs / Bulb locations

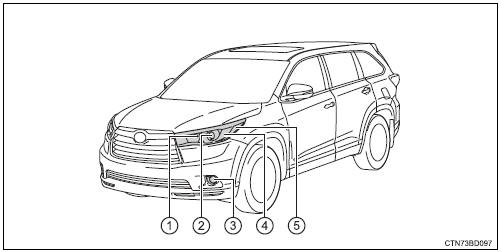

Front

Toyota Highlander. Front


  1. Headlight high beam/daytime running light
  2. Headlight low beam
  3. Front fog light (if equipped)
  4. Front turn signal light/parking light
  5. Front side marker light

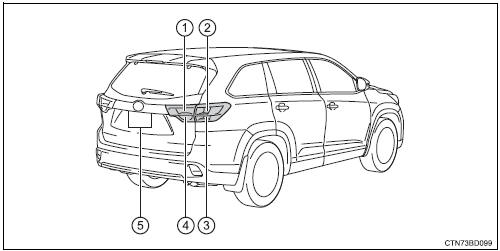

Rear

Toyota Highlander. Rear


  1. Tail light
  2. Stop/tail light and rear side marker light
  3. Rear turn signal light
  4. Back-up light
  5. License plate lights
Light bulbs
You may replace the following bulbs by yourself. The difficulty level of replacement varies depending on the bulb. If necessary bulb replacement seems difficult to perform, contact your toyota deal ...

Replacing light bulbs
Headlight low beams For the right side only: remove the washer fluid tank opening. Turn the bulb base counterclockwise. Unplug the connector while pressing the lock relea ...
