Toyota Highlander Service Manual: Blower ASSY

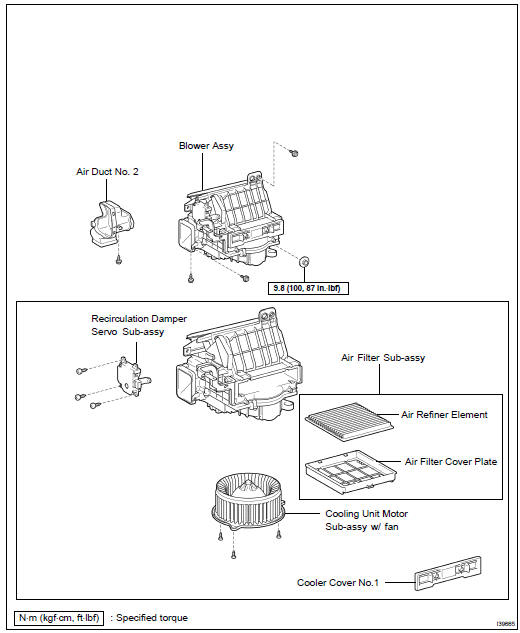

COMPONENTS

COMPONENTS


OVERHAUL

HINT: COMPONENTS: see page 55-40

1. REMOVE GLOVE COMPARTMENT DOOR ASSY(SEE PAGE 71-10 )

2. REMOVE AIR DUCT NO.2

REMOVE AIR DUCT NO.2


(a) Remove the screw.

(b) Release the 3 claw fittings and remove the air duct No.2.

3. REMOVE ECM

REMOVE ECM


(a) Disconnect the connectors.

(b) Remove the 2 nuts and ECM.

4. REMOVE CLEAN AIR FILTER SUB-ASSY

(a) Release the 2 claw fittings and remove the air filter sub-assy.

5. REMOVE CLEAN AIR FILTER

REMOVE CLEAN AIR FILTER


(a) Remove the air refiner element from the air filter cover plate

6. REMOVE BLOWER ASSY

REMOVE BLOWER ASSY


(a) Disconnect the connector and clamp of the cooling unit motor w/ fan sub-assy.

(b) Disconnect the connector of the recirculation damper servo.

(c) Remove the 2 screws and bracket.

REMOVE BLOWER ASSY


(d) Remove the bolt, nut and 2 screws.

(e) Disconnect the part fitted to the air conditioner radiator assy and remove the blower assy.

7. REMOVE RECIRCULATION DAMPER SERVO SUB-ASSY

REMOVE RECIRCULATION DAMPER SERVO SUB-ASSY


(a) Remove the 3 screws and air inlet servo motor (recirculation damper servo sub-assy).

8. REMOVE COOLING UNIT MOTOR SUB-ASSY W/FAN

REMOVE COOLING UNIT MOTOR SUB-ASSY W/FAN


(a) Remove the 3 screws and cooling unit motor servo subassy w/ fan.

9. INSTALL BLOWER ASSY

INSTALL BLOWER ASSY


(a) Aligning the part to be fitted with that of the air conditioner radiator assy, install the blower assy.

(b) Install the blower assy with the bolt, nut and 2 screws.

Torque: 9.8 NVm (100kgfVcm, 87 in.Vlbf)

INSTALL BLOWER ASSY


(c) Install the bracket with the 2 screws.

(d) Install the connector and clamp.

10. INSTALL ECM

INSTALL ECM


(a) Install the ECM with the 2 nuts.

Torque: 5.5 NVm (56 kgfVcm, 49 in.Vlbf)
