Wheel and tire system

Inspection

1. INSPECT TIRE

(a) Check the tires for wear and proper inflation pressure.

Cold tire inflation pressure:

INSPECT TIRE


(b) Using a dial indicator, check the tire runout.

Tire runout: 1.4 mm (0.055 in.) or less

INSPECT TIRE


2. ROTATE TIRE

ROTATE TIRE


HINT: See the illustration for where to rotate each tire when you include the spare tire in the rotation and when you do not.

3. INSPECT WHEEL BALANCE

INSPECT WHEEL BALANCE


(a) Check and adjust the Off-the-car balance.

(b) If necessary, check and adjust the On-the-car balance.

Imbalance after adjustment: 8.0 g (0.018 lb) or less

4. INSPECT BEARING BACKLASH (See page 30-3 )

5. INSPECT BEARING BACKLASH (See page 30-3 )

6. INSPECT AXLE HUB DEVIATION (See page 30-3 )

7. INSPECT AXLE HUB DEVIATION (See page 30-3 )

How to proceed with troubleshooting

1. VEHICLE PULLING DIAGNOSIS (SEE PAGE 26-2 )

2. DIAGNOSIS OF TIRE VIBRATION

DIAGNOSIS OF TIRE VIBRATION


3. DIAGNOSIS OF PREMATURE OF IRREGULAR TIRE WEAR

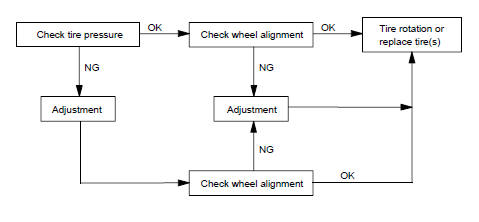

DIAGNOSIS OF PREMATURE OF IRREGULAR TIRE WEAR
