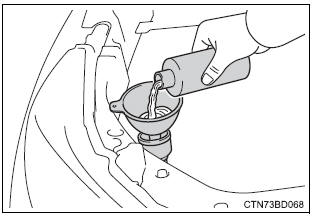

If any washer does not work or the warning message appears on the multi-information display, the washer tank may be empty. Add washer fluid.
![]()
Do not add washer fluid when the engine is hot or running as washer fluid contains alcohol and may catch fire if spilled on the engine etc. |
![]()
Do not use soapy water or engine antifreeze instead of washer fluid. Doing so may cause streaking on the vehicle's painted surfaces. Diluting washer fluid Dilute washer fluid with water as necessary. Refer to the freezing temperatures listed on the label of the washer fluid bottle. |
Engine rear oil seal (2AZ-FE)
REPLACEMENT
1. REMOVE AUTOMATIC TRANSAXLE ASSY (See page 40-12 )
HINT:
Remove and install the transaxle after removing the engine assy w/ transaxle.
2. REMOVE DRIVE PLATE & RING GEAR SUB-ASSY
(a) Using SST, fix the crankshaft.
SST 09213-54015 (91651-60855), 09330-00021
(b) Remov ...
