Toyota Highlander Owners Manual: Vehicle identification
Vehicle identification number
The vehicle identification number (vin) is the legal identifier for your vehicle. This is the primary identification number for your toyota. It is used in registering the ownership of your vehicle.

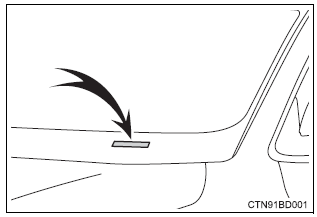

This number is stamped on the top left of the instrument panel.

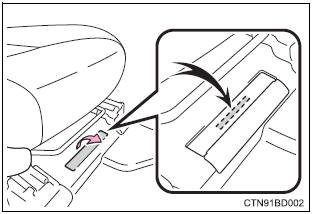

On some models, this number is stamped under the right-hand front seat.

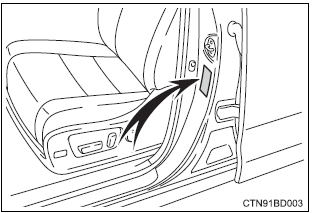

This number is also on the certification label.
Engine number
The engine number is stamped on the engine block as shown

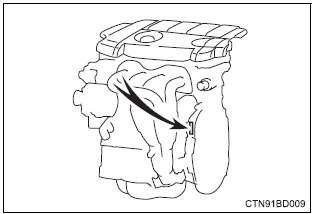

- 2.7 L 4-cylinder (1ar-fe) engine

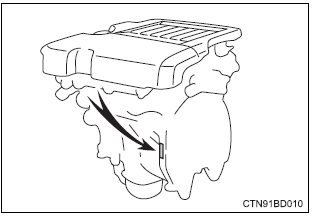

- 3.5 L v6 (2gr-fe) engine

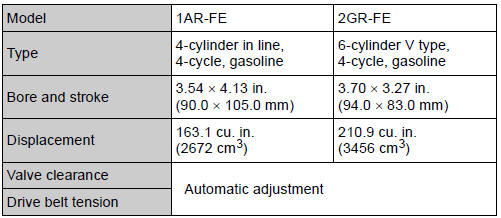

Engine

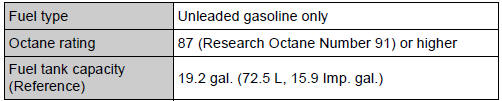

Fuel
Dimensions and weights
*1: Unladen vehicles
*2: with a seating capacity of 7 occupants
*3: with a seating capacity of 8 occupants
*4: without a towing package
*5: with a towing package ...
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
& ...
