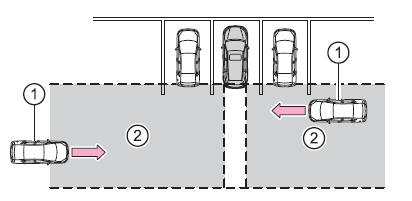

The rear cross traffic alert functions when your vehicle is in reverse.
It can detect other vehicles approaching from the right or left rear of the vehicle. It uses radar sensors to alert the driver of the other vehicle’s existence through flashing the outside rear view mirror indicators and sounding a buzzer.
Warning
The driver is solely responsible for safe driving. Always drive safely, taking care to observe your surroundings. The rear cross traffic alert function is only an assist and is not a replacement for careful driving. Driver must be careful when backing up, even when using rear cross traffic alert function. The driver’s own visual confirmation of behind you and your vehicle is necessary and be sure there are no pedestrians, other vehicles etc. Before backing up. Failure to do so could cause death or serious injury. According to conditions, the system may not function correctly. Therefore the driver’s own visual confirmation of safety is necessary. |
Parking brake ASSY
COMPONENTS
OVERHAUL
HINT:
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSY LH
(a) Remove the 2 bolts and separate the rear disc brake caliper assy LH.
HINT:
Do no ...
