Toyota Highlander Owners Manual: Stowing the flat tire, jack and all tools (with a full-size spare tire)

Toyota Highlander Owners Manual / When trouble arises / Steps to take in an emergency / If you have a flat tire / Stowing the flat tire, jack and all tools (with a full-size spare tire)

  1. Remove the center wheel ornament by pushing from the reverse side.

    Be careful not to lose the wheel ornament.

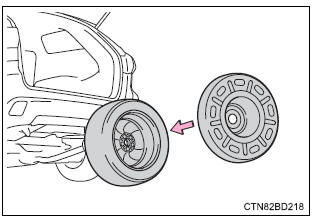

  2. Stand the tire against the bumper with the inner surface facing toward you and install the outside spare tire cover.

Toyota Highlander. Stowing the flat tire, jack and all tools

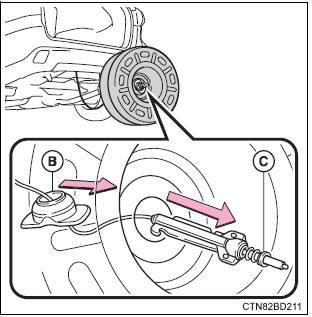

  1. Pass the hoist assembly (c) and holding bracket (b) through the wheel opening.

Toyota Highlander. Stowing the flat tire, jack and all tools

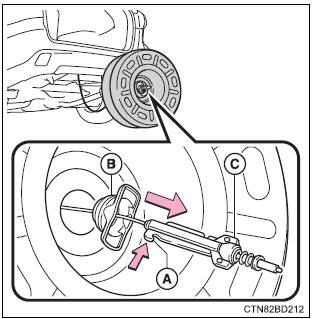

  1. Fully depress the secondary latch (a) and install the bracket (b) to the hoist assembly (c).

Toyota Highlander. Stowing the flat tire, jack and all tools

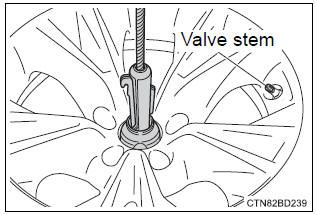

  1. Lay the tire on the ground with the outer surface (valve stem) facing up.

Toyota Highlander. Stowing the flat tire, jack and all tools

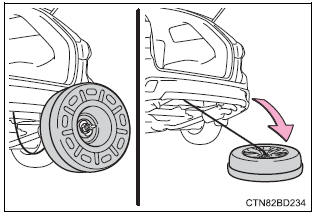

  1. When stowing the tire, make sure that the hoist assembly is placed perpendicular to the wheel opening.

Toyota Highlander. Stowing the flat tire, jack and all tools

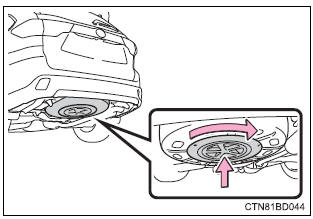

  1. Using the jack handle and adapter socket, tighten the spare tire clamp bolt by turning it clockwise until the tire is in the correct position and two clicks are heard as the jack handle skips.
  2. Install the inside spare tire cover to the outside spare tire cover.

Toyota Highlander. Stowing the flat tire, jack and all tools


  1. Stow the jack and all tools.

The compact spare tire (vehicles with a compact spare tire)

When the compact spare tire is installed (vehicles with a compact spare tire)

The vehicle is lower when the compact spare tire is installed compared to when standard tires are installed.

When using the compact spare tire (vehicles with a tire pressure warning system)

As the compact spare tire is not equipped with a tire pressure warning valve and transmitter, low inflation pressure of the spare tire will not be indicated by the tire pressure warning system. Also, if you replace the compact spare tire after the tire pressure warning light comes on, the light remains on.

If you have a flat front tire on a road covered with snow or ice (vehicles with a compact spare tire)

Install the compact spare tire on one of the rear wheels of the vehicle.

  1. Perform the following steps and fit tire chains to the front tires: replace a rear tire with the compact spare tire.
  2. Replace the flat front tire with the tire removed from the rear of the vehicle.
  3. Fit tire chains to the front tires.
Warning


When using the compact spare tire (vehicles with a compact spare tire)

  • Remember that the compact spare tire provided is specifically designed for use with your vehicle. Do not use your compact spare tire on another vehicle.
  • Do not use more than one compact spare tires simultaneously.
  • Replace the compact spare tire with a standard tire as soon as possible.
  • Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations that cause sudden engine braking.

When the compact spare tire is attached (vehicles with a compact spare tire)

The vehicle speed may not be correctly detected, and the following systems may not operate correctly:

  • Abs & brake assist
  •  vsc
  •  trac
  •  cruise control (if equipped)
  •  dynamic radar cruise control (if equipped)
  •  pre-collision system (if equipped)
  •  eps
  •  automatic high beam (if equipped)
  • lda (lane departure alert) (if equipped)
  • intuitive parking assist (if equipped)
  • navigation system (if equipped)

Also, not only can the following system not be utilized fully, but it may even negatively affect the drive-train components:

  •  awd system (if equipped)

Speed limit when using the compact spare tire (vehicles with a compact spare tire)

Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is installed on the vehicle.

The compact spare tire is not designed for driving at high speeds. Failure to observe this precaution may lead to an accident causing death or serious injury.

Replacing a flat tire for vehicles with power back door

In cases such as when replacing tires, make sure to turn off the power back door main switch . Failure to do so may cause the back door to operate unintentionally if the power back door switch is accidentally touched, resulting in hands and fingers being caught and injured.

After using the tools and jack

Before driving, make sure all the tools and jack are securely in place in their storage location to reduce the possibility of personal injury during a collision or sudden braking.



Notice


Be careful when driving over bumps with the compact spare tire installed on the vehicle.

The vehicle becomes lower when driving with the compact spare tire compared to when driving with standard tires. Be careful when driving over uneven road surfaces.

Driving with tire chains and the compact spare tire

Do not fit tire chains to the compact spare tire.

Tire chains may damage the vehicle body and adversely affect driving performance.

When replacing the tires (vehicles with a tire pressure warning system)

When removing or fitting the wheels, tires or the tire pressure warning valve and transmitter, contact your toyota dealer as the tire pressure warning valve and transmitter may be damaged if not handled correctly.

To avoid damage to the tire pressure warning valves and transmitters (vehicles with a tire pressure warning system)

When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your toyota dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and transmitter when replacing the tire.

When stowing the flat tire

  • Ensure that there is no object caught between the tire and the vehicle underbody.
  • Securely tighten the spare tire clamp bolt to hold the spare wheel carrier by the hook.
  • Stow the flat tire in the spare tire location. Failure to do so may cause damage to the spare tire carrier. Proper storage reduces the possibility of injury in a collision or during sudden braking.
  • Have the flat tire repaired and the spare tire replaced with it as soon as possible.

Proper storage of the spare tire

  • If the hoist assembly is slanted when stowing a tire, the hoist assembly may become stuck in the wheel opening and the tire may not be raised properly, causing damage to the wheel or the wire cable.


  • Do not attempt to turn the spare tire clamp bolt without a tire on the hoist assembly, as doing so may cause the wire cable to slip off of the shaft inside the unit and the wire cable may not be able to be raised or lowered. If the spare tire clamp bolt has been turned without a tire on the hoist assembly and the wire cable cannot be raised or lowered, contact your toyota dealer.
