Toyota Highlander Owners Manual: Stowing the flat tire, jack and all tools (with a compact spare tire)

Toyota Highlander Owners Manual / When trouble arises / Steps to take in an emergency / If you have a flat tire / Stowing the flat tire, jack and all tools (with a compact spare tire)

  1. Remove the center wheel ornament by pushing from the reverse side.

    Be careful not to lose the wheel ornament.

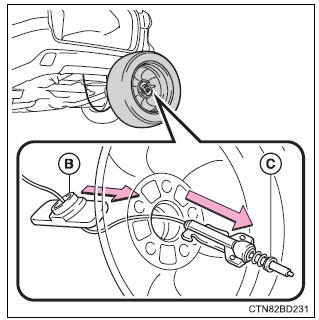

  2. Stand the tire against the bumper with the inner surface facing toward you. Pass the hoist assembly (c) and holding bracket (b) through the wheel opening.

Toyota Highlander. Stowing the flat tire, jack and all tools (with a compact spare tire)

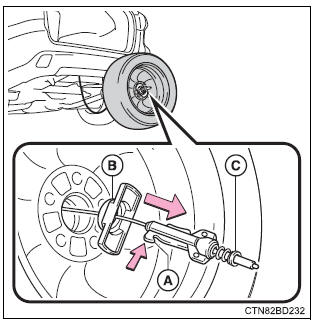

  1. Fully depress the secondary latch (a) and install the bracket (b) to the hoist assembly (c).

Toyota Highlander. Stowing the flat tire, jack and all tools (with a compact spare tire)

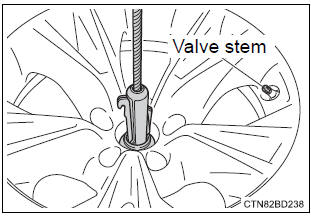

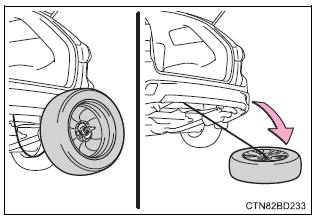

  1. Lay the tire on the ground with the outer surface (valve stem) facing up.

Toyota Highlander. Stowing the flat tire, jack and all tools (with a compact spare tire)


  1. Before raising the tire, make sure that the hoist assembly is perpendicular to the wheel opening. (Try to place the tire directly beneath the vehicle, near where the wire cable is hanging from.)

Toyota Highlander. Stowing the flat tire, jack and all tools (with a compact spare tire)


  1. Using the jack handle and adapter socket, tighten the tire clamp bolt by turning it clockwise until the tire is in the correct position and two clicks are heard as the jack handle skips.
  2. Stow the jack and all tools.
