Toyota Highlander Owners Manual: Releasing and stowing the seat belt (for the third center seat)

Toyota Highlander Owners Manual / For safety and security / For safe use / Seat belts / Releasing and stowing the seat belt (for the third center seat)

  1. To release plate “b”, press the release button on buckle “b”.

Toyota Highlander. Releasing and stowing the seat belt

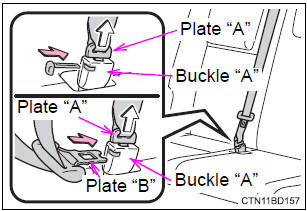

  1. To release plate “a”¸, insert the key  Or plate “b”¸ into the hole on buckle “a”¸.

    Retract the belt slowly when releasing and stowing the seat belt.

Toyota Highlander. Releasing and stowing the seat belt


  1. Holding plate “a” and “b” together, insert both plates into the holder on the roof.

Toyota Highlander. Releasing and stowing the seat belt


Adjusting the seat belt shoulder anchor height (front seats)

  1. Push the seat belt shoulder anchor down while pressing the release button.
  2. Push the seat belt shoulder anchor up.

    Move the height adjuster up and down

Toyota Highlander. Adjusting the seat belt shoulder anchor height


Fastening the seat belt (for the third center seat)
Take the plate out of the holder, and then pull down the seat belt. Push plate “a” into buckle “a” until a click sound is heard. Push plate “b” into buckle “ ...

Seat belt comfort guide (for the third center seat)
If the shoulder belt sits close to a person's neck, use the seat belt comfort guide. Pull the comfort guide from the pocket. Slide the belt past the slot of the guide. The elastic ...
