Toyota Highlander Service Manual: Rear NO.2 Seat belt

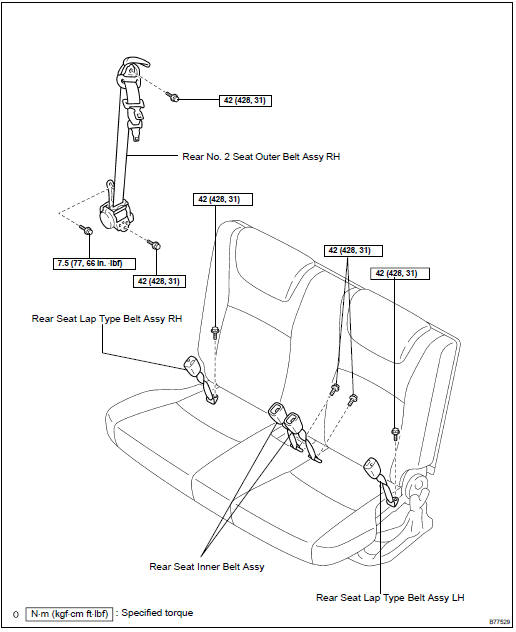

COMPONENTS

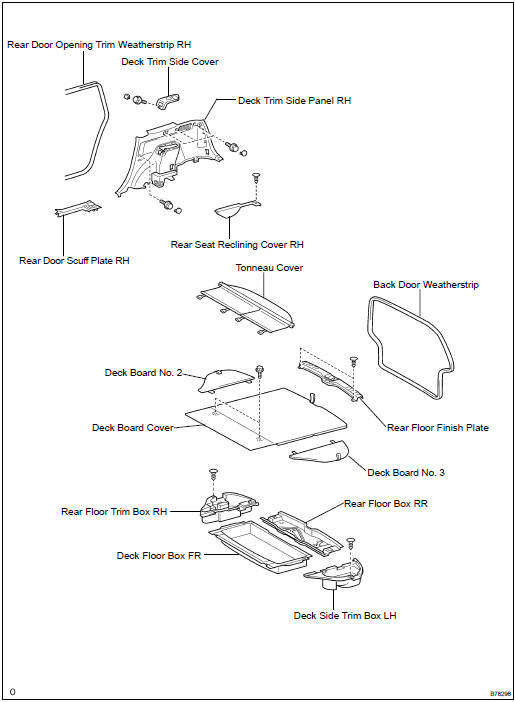

COMPONENTS


COMPONENTS


REPLACEMENT

HINT:

1. REMOVE REAR SEAT LAP TYPE BELT RH

(a) Remove the rear No. 2 seat (see page 72-61 ).

(b) Remove the rear seat lap type belt assy RH.

  1.  Remove the bolt and belt.

(c) Install the rear seat lap type belt assy RH.

  1.  Remove the bolt and belt.

Torque: 42 NVm (428 kgfVcm, 31 ftVlbf)

2. REMOVE REAR SEAT INNER BELT ASSY

(a) Remove the rear No. 2 seat (see page 72-61 ).

(b) Remove the rear seat inner belt assy.

  1.  Remove the 2 bolts and 2 belts.

REMOVE REAR SEAT INNER BELT ASSY


(c) Install the rear seat inner belt assy.

  1.  Remove the 2 bolts and 2 belts.

Torque: 42 NVm (428 kgfVcm, 31 ftVlbf)

NOTICE: Do not allow the anchor part of the rear belt and the protruding parts of the floor panel to overlap.

3. REMOVE REAR NO.2 SEAT OUTER BELT ASSY RH

(a) Remove the tonneau cover (see page 76-21 ).

(b) Remove the deck board cover (see page 76-21 ).

(c) Remove the deck board cover No. 2 (see page 76-21 ).

(d) Remove the deck board cover No. 3 (see page 76-21 ).

(e) Remove the rear seat reclining cover LH (see page 76-21 ).

(f) Remove the rear seat reclining cover RH (see page 76-21 ).

(g) Remove the deck floor box RR (see page 76-21 ).

(h) Remove the rear floor finish plate (see page 76-21 ).

(i) Remove the deck side trim box LH (see page 76-21 ).

(j) Remove the deck side trim box RH (see page 76-21 ).

(k) Remove the rear No. 1 seat LH (see page 76-21 ).

(l) Remove the rear No. 1 seat RH (see page 76-21 ).

(m) Remove the rear No. 2 seat RH (see page 76-21 ).

(n) Remove the rear door opening trim weatherstrip RH (see page 76-21 ).

(o) Remove the back door weatherstrip (see page 76-21 ).

(p) Remove the rope hook (see page 76-21 ).

(q) Remove the rear door scuff plate RH (see page 76-21 ).

(r) Remove the deck trim side panel RH (see page 76-21 ).

(s) Remove the quarter pillar garnish RH (see page 76-21 ).

REMOVE REAR NO.2 SEAT OUTER BELT ASSY RH


(t) Remove the rear No. 2 seat belt assy outer RH.

  1.  Using a screwdriver, open the seat belt anchor cover HINT: Tape the screwdriver tip before use.
  2.  Remove the bolt and shoulder anchor.
  3.  Remove the 2 bolts and belt.

REMOVE REAR NO.2 SEAT OUTER BELT ASSY RH


(u) Install the rear No. 2 seat belt assy outer RH.

  1.  Check the amount of inclination required to lock the retractor.

NOTICE: Do not disassemble the retractor.

If operation is not as specified, replace the outer belt assy.

  1.  Install the belt with the 2 bolts.

Torque: 7.5 NVm (77 kgfVcm, 66 in.Vlbf) for upper bolt 42 NVm (428 kgfVcm, 31 ftVlbf) for lower bolt

  1.  Install the shoulder anchor with the bolt.

    Torque: 42 NVm (428 kgfVcm, 31 ftVlbf)
