Toyota Highlander Service Manual: Parking brake

SERVICE DATA

Parking brake

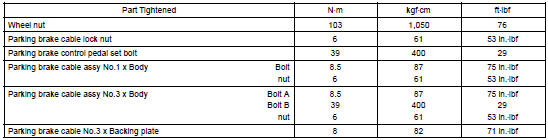

TORQUE SPECIFICATION

Parking brake
