Toyota Highlander Owners Manual: Panoramic moon roof

Use the overhead switches to operate the panoramic moon roof.

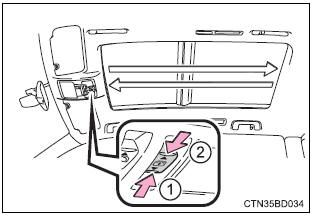

Opening and closing the shade

  1. Open*
  2. close*

*: to stop operation partway, quickly slide and release the switch again.

Toyota Highlander. Opening and closing the shade

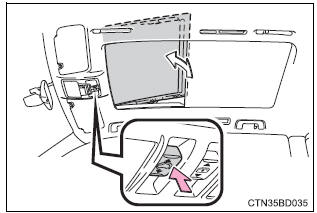

Tilting up and down the moon roof

Tilt up (press)*

If the moon roof is open, pressing the switch closes it up to the tilt-up position.

If the shade is closed past the half-open position when the switch is pressed, it will open up to the half-open position.

Tilt down (press and hold)

The moon roof can be tilted down only when it is in the tilt-up position.

*: To stop operation partway, lightly press the switch again.

Toyota Highlander. Tilting up and down the moon roof


Opening and closing the moon roof

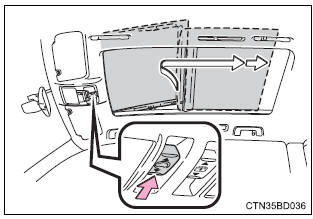

Open (slide backward)*

The moon roof stops slightly before the fully open position to reduce wind noise and the shade opens fully.

Slide the switch again to fully open the moon roof.

The moon roof can also be opened from the tilt-up position.

Toyota Highlander. Opening and closing the moon roof

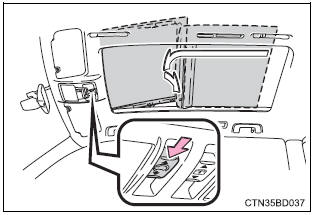

Close (slide forward)*

Toyota Highlander. Opening and closing the moon roof


The moon roof stops at the tiltup position.

Slide and hold the switch again to fully close the moon roof.

*: To stop operation partway, quickly slide and release the switch again.

The shade and moon roof can be operated when

The engine switch is in ignition on mode.

Operating the shade and moon roof after turning the engine off

The shade and moon roof can be operated for approximately 45 seconds after the engine switch is turned to accessory mode or turned off. It cannot, however, be operated once either front door is opened.

Closing the shade when the moon roof is open

  1. Slide the shade switch forward.

    The shade closes up to its half-closed position and then the moon roof closes up to the tilt-up position.

  2. Slide and hold the shade switch again.

    The moon roof closes as long as the switch is being held. After the moon roof is fully closed, the shade will fully close automatically.

Jam protection function

When the moon roof does not close normally

Perform the following procedure:

  1. stop the vehicle.
  2. Slide the moon roof switch forward and hold it.* The moon roof will close then reopen and pause for approximately 10 seconds. Then it will close up to the tilt-up position.
  3. Release the switch and then slide it forward and hold it again.

    The moon roof will close as long as the switch is being held.

  4. Check to make sure that the moon roof is completely closed and then release the switch.
  1. stop the vehicle.
  2. Slide the moon roof switch forward and hold it.* The moon roof will tilt down then tilt up and pause for approximately 10 seconds. Then it will close.
  3. Check to make sure that the moon roof is completely closed and then release the switch.

*: If the switch is released at the incorrect time, the procedure will have to be performed again from the beginning.

If the moon roof does not fully close even after performing the above procedure correctly, have the vehicle inspected by your toyota dealer.

When the shade does not close normally

Perform the following procedure:

  1. stop the vehicle.
  2. Close the moon roof.
  3. Slide the shade switch forward and hold it.* The shade will close then reopen and pause for approximately10 seconds.

    Then it will close.

  4. Check to make sure that the shade is completely closed and then release the switch.

*: If the switch is released at the incorrect time, the procedure will have to be performed again from the beginning.

If the shade continues to close but then reopens slightly even after performing the above procedure correctly, have the vehicle inspected by your toyota dealer.

Moon roof open warning buzzer

The buzzer sounds and a message is shown on the multi-information display in the instrument cluster when the engine switch is turned off and the drivers door is opened with the moon roof open.

Warning


Observe the following precautions.

Failure to do so may result in death or serious injury.

Closing the shade

  • check to make sure that all passengers do not have any part of their body in a position where it could be caught when the shade is being operated.
  • Do not allow children to operate the shade.

    Closing a shade on someone can cause death or serious injury. The driver is responsible for instructing children not to operate the shade.

Opening the moon roof

  • do not allow any passengers to put their hands or heads outside the vehicle while it is moving.
  • Do not sit on top of the moon roof.

Closing the moon roof

  • check to make sure that all passengers do not have any part of their body in a position where it could be caught when the moon roof is being operated.
  • Do not allow children to operate the moon roof.

    Closing the moon roof on someone can cause death or serious injury. The driver is responsible for instructing children not to operate the moon roof.

?Jam protection function

  • never use any part of your body to intentionally activate the jam protection function.
  • The jam protection function may not work if something gets caught just before the shade or moon roof is fully closed.



Notice


To prevent damage to the moon roof

  • before opening, make sure that there are no foreign objects such as stones or ice around the opening.
  • Do not hit the face or edge of the moon roof with hard objects.
