Toyota Highlander Owners Manual: Luggage compartment features

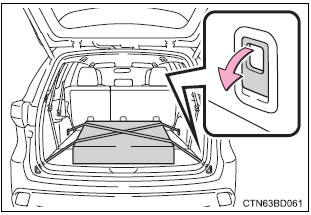

Cargo hooks

Raise the hooks to use.

Cargo hooks are provided for securing loose items.

Toyota Highlander. Cargo hooks

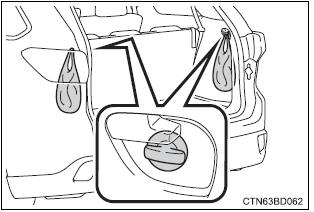

Grocery bag hooks

Toyota Highlander. Grocery bag hooks


Do not hang any object heavier than 6.6 Lb. (3 Kg) on the grocery bag hooks.

Auxiliary boxes

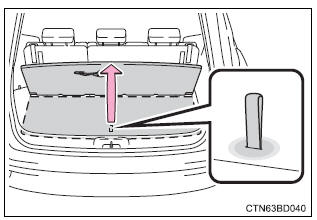

Center deck under tray

  1. Pull the strap upwards to open the center deck board.

Toyota Highlander. Center deck under tray

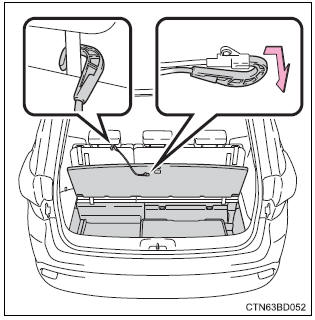

  1. To secure the center deck board, remove the hook on the backside of the center deck board and attach the hook to the head restraint on the third seats as shown.

Toyota Highlander. Center deck under tray

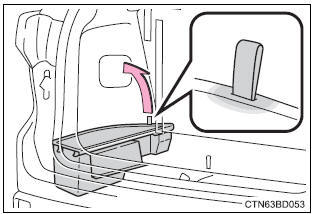

Deck side box

Pull the strap upwards to open the side deck board.

Toyota Highlander. Deck side box


Do not drive with any of the deck boards opened. Items may fall out and cause injury.

Open tray
Cable pass through The open tray is provided with a hole that allows cables to be passed through the tray from the usb/aux port or power outlet. Remove the cover. Warning Items unsuitabl ...
