SERVICE DATA

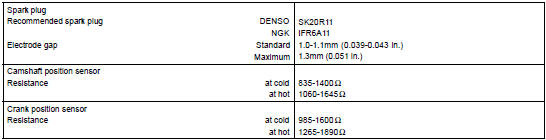

2AZ-FE

Ignition

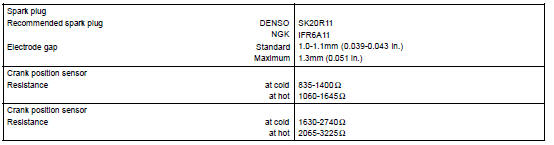

3MZ-FE

Ignition

TORQUE SPECIFICATION

2AZ-FE

Ignition

3MZ-FE

Ignition
