Toyota Highlander Owners Manual: Engine oil

With the engine at operating temperature and turned off, check the oil level on the dipstick.

Checking the engine oil

  1. Park the vehicle on level ground. After warming up the engine and turning it off, wait more than 5 minutes for the oil to drain back into the bottom of the engine.
  2. Holding a rag under the end, pull the dipstick out.

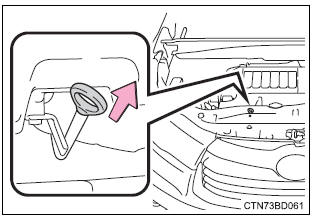

Toyota Highlander. Checking the engine oil

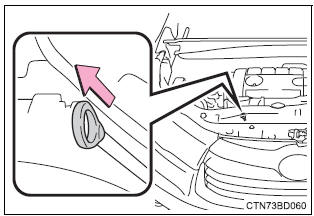

Toyota Highlander. Checking the engine oil


  1. Wipe the dipstick clean.
  2. Reinsert the dipstick fully.
  3. Holding a rag under the end, pull the dipstick out and check the oil level.

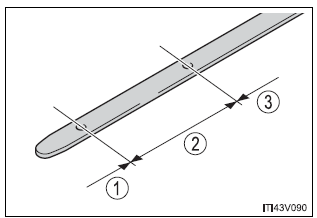

Toyota Highlander. Checking the engine oil


  1. Low
  2. Normal
  3. Excessive
  1. Wipe the dipstick and reinsert it fully.

Adding engine oil

If the oil level is below or near the low level mark, add engine oil of the same type as that already in the engine.

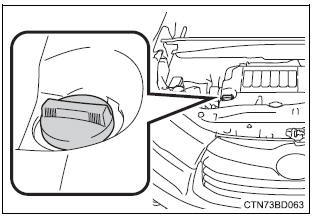

Toyota Highlander. Adding engine oil

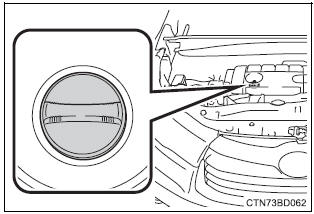

Toyota Highlander. Adding engine oil


Make sure to check the oil type and prepare the items needed before adding oil.

Engine oil selection


Oil quantity (low - full)

1.6 Qt. (1.5 L, 1.3 Imp. Qt.)
Items

Clean funnel
  1. Remove the oil filler cap by turning it counterclockwise.
  2. Add engine oil slowly, checking the dipstick.
  3. Install the oil filler cap by turning it clockwise.
