Toyota Highlander Service Manual: Emission control
Toyota Highlander Service Manual / Service specifications / Emission control
SERVICE DATA

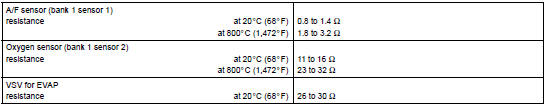

2AZ-FE

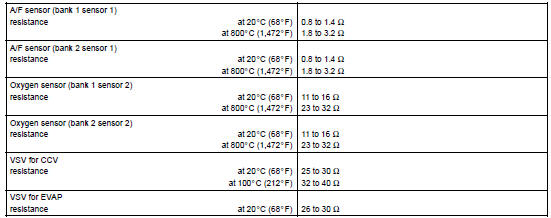

3MZ-FE
INTAKE
SERVICE DATA
3MZ-FE
TORQUE SPECIFICATION
3MZ-FE
Fuel
SERVICE DATA
2AZ-FE:
3MZ-FE:
TORQUE SPECIFICATION
2AZ-FE:
3MZ-FE:
...
