Toyota Highlander Service Manual: Drive shaft / propeller shaft / axle

Toyota Highlander Service Manual / Service specifications / Drive shaft / propeller shaft / axle

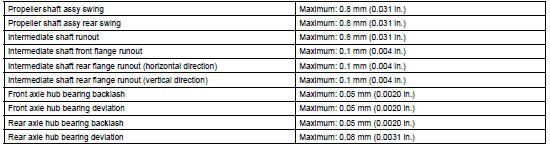

SERVICE DATA

Drive shaft / propeller shaft / axle

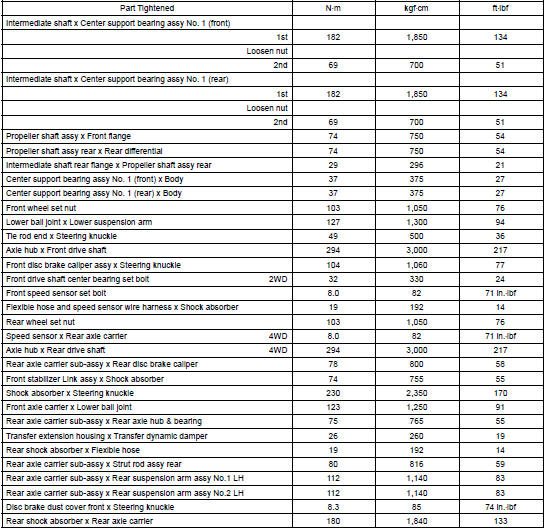

TORQUE SPECIFICATION

Drive shaft / propeller shaft / axle
