Toyota Highlander Service Manual: Differential (4WD)

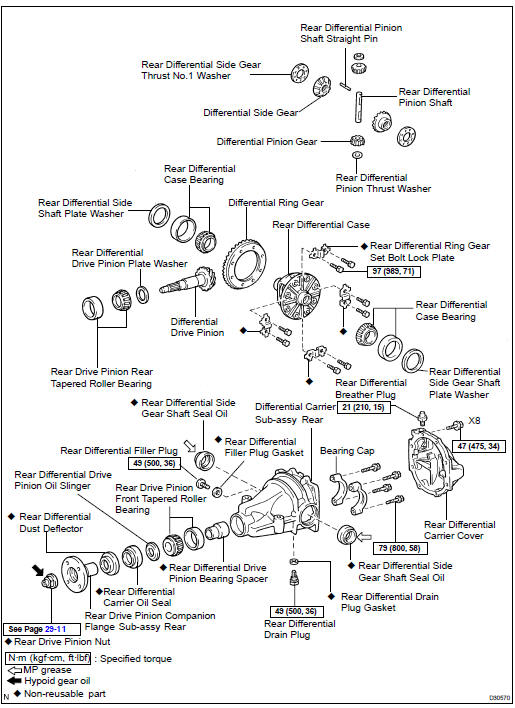

COMPONENTS

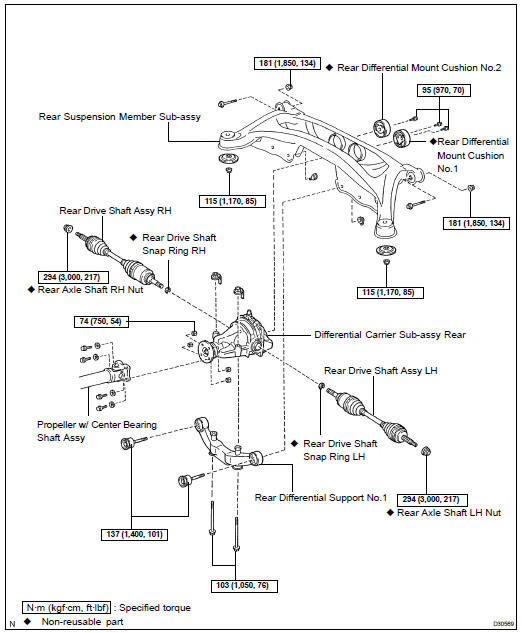

COMPONENTS


COMPONENTS


Problem symptoms table
Use the table below to help you find the cause of the problem. The causes of the problem are listed in order of probability in the "Suspected Area" column. Check each part in order. If necessary, ...

Differential oil (4WD)
ADJUSTMENT 1. INSPECT DIFFERENTIAL OIL (a) Stop the vehicle on the level place. (b) Remove the differential filler plug and gasket. (c) Check that the oil surface is within 5 mm (0.20 in.) fro ...
