Toyota Highlander Service Manual: Components

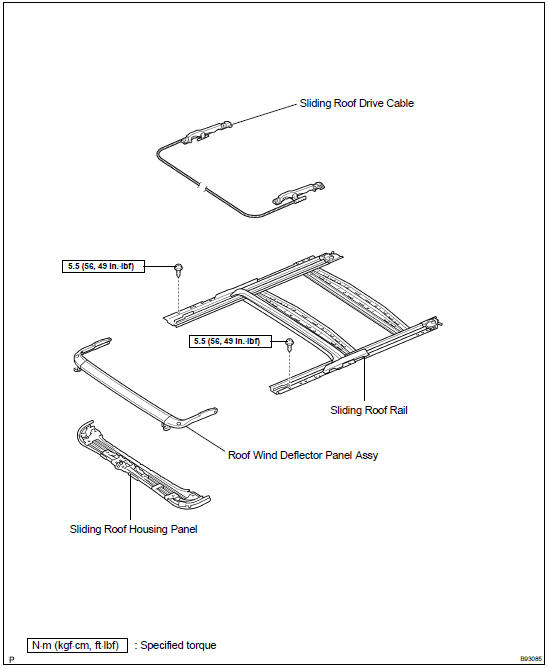

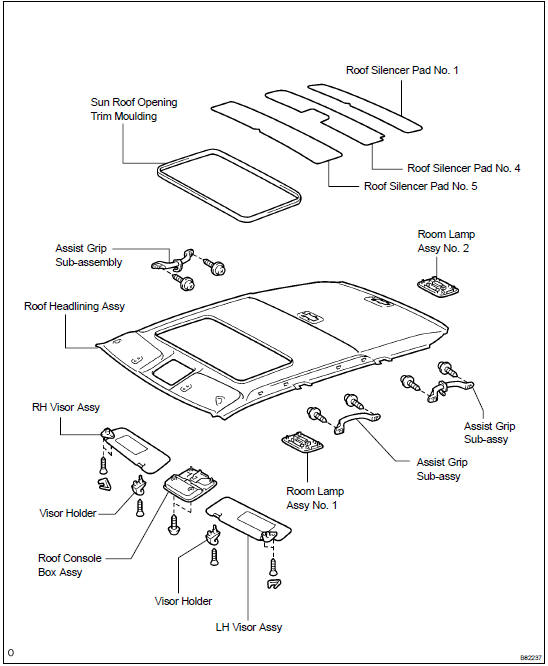

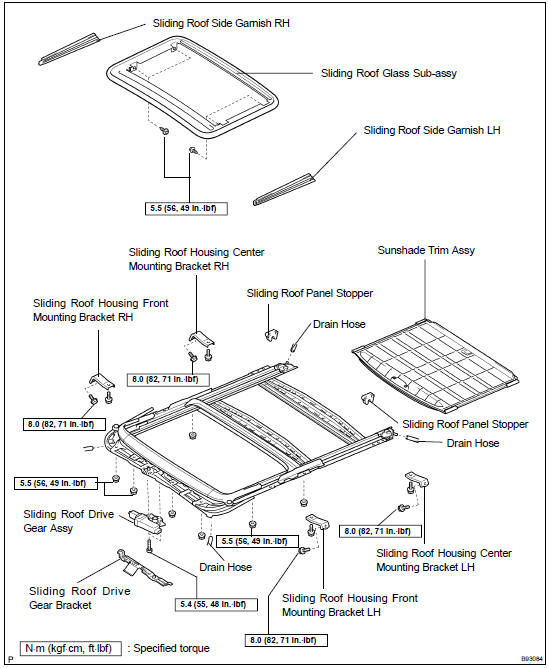

Components


Components


Components


Components


Components


Sliding roof
...

Overhaul
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL 2. REMOVE ROOF HEADLINING ASSY (See page 76-21 ) 3. REMOVE SLIDING ROOF SIDE GARNISH RH (a) Using a screwdriver, detach the 4 claws and remove ...
