Toyota Highlander Service Manual: Components

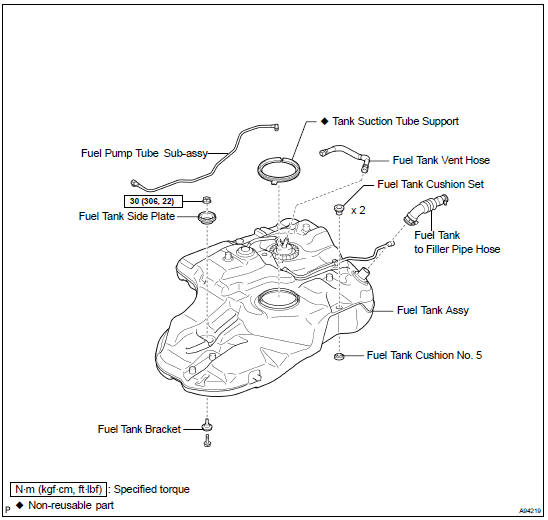

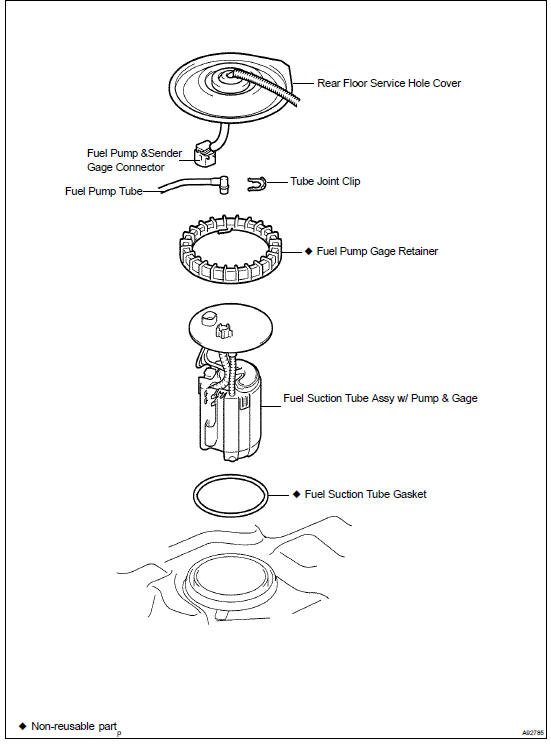

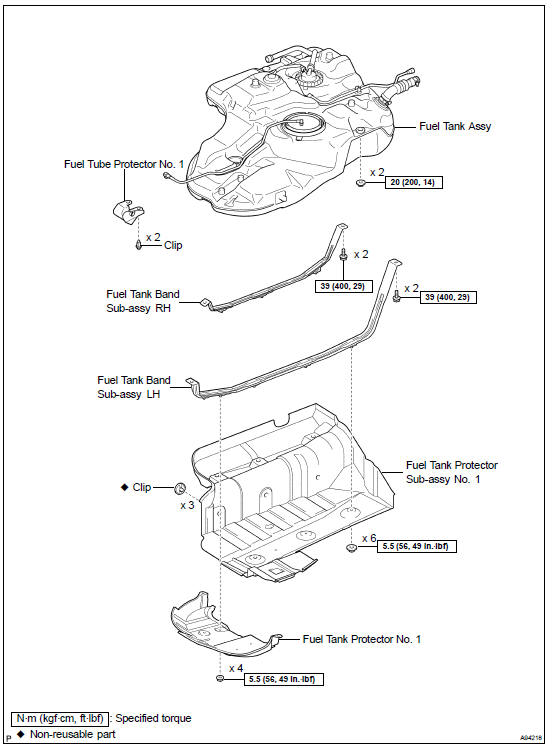

Fuel tank ASSY (2AZ-FE)


Fuel tank ASSY (2AZ-FE)


Fuel tank ASSY (2AZ-FE)


Fuel tank ASSY (2AZ-FE)


Fuel tank ASSY (2AZ-FE)


Fuel tank ASSY (2AZ-FE)


Fuel tank ASSY (2AZ-FE)
...

Replacement

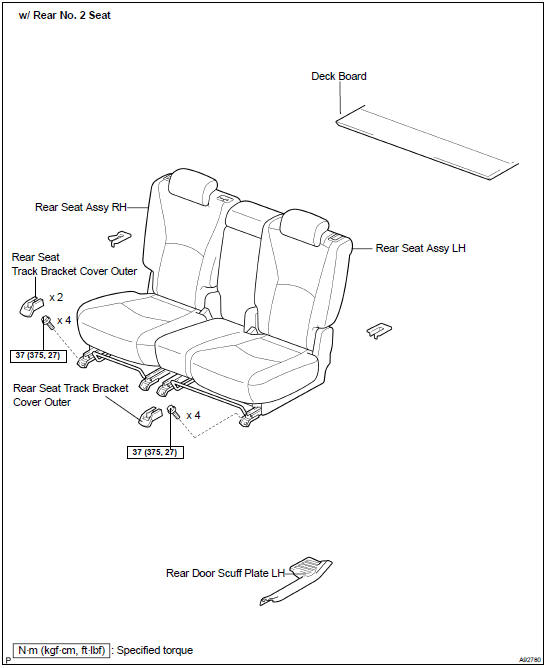

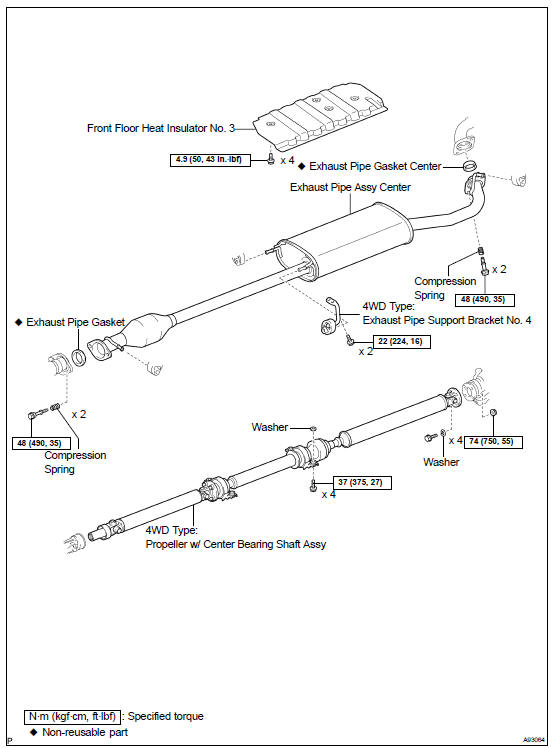

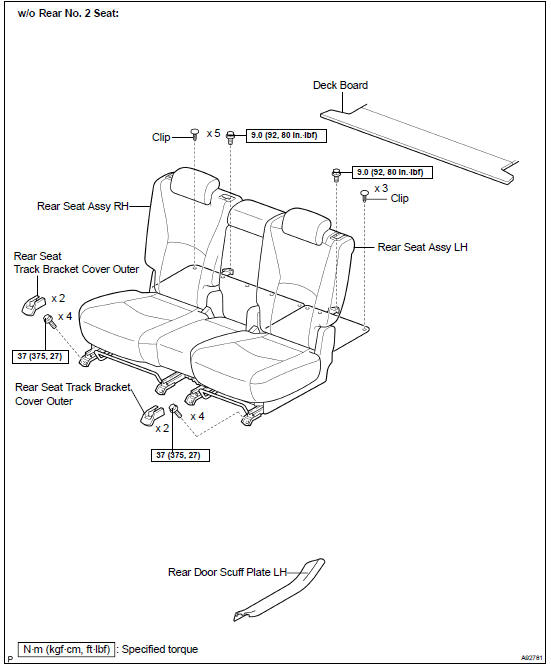

1. DISCHARGE FUEL SYSTEM PRESSURE (See page 11-1 ) 2. REMOVE DECK BOARD SUB-ASSY 3. REMOVE REAR SEAT TRACK BRACKET COVER OUTER 4. REMOVE REAR SEAT ASSY RH (See page 72-35 ) 5. REMOVE REAR SEAT ASS ...
