Toyota Highlander Owners Manual: Checking and replacing fuses

If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary.

  1. Vehicles without a smart key system: turn the engine switch to the "lock" position.

    Vehicles with a smart key system: turn the engine switch off.

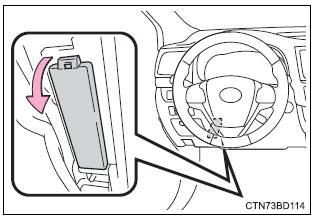

  2. Open the fuse box cover.

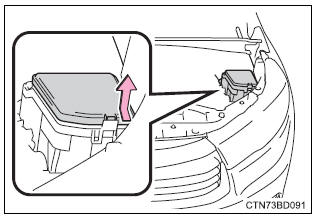

Push the tab in and lift the lid off.

Toyota Highlander. Checking and replacing fuses

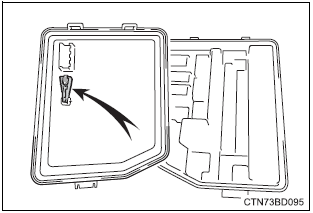

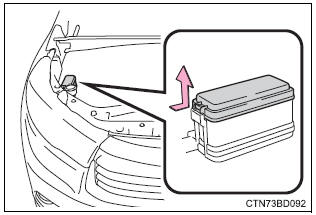

Push the tab in and lift the lid off.

Toyota Highlander. Checking and replacing fuses


Remove the lid.

Toyota Highlander. Under the drivers side instrument panel


  1. Remove the fuse with the pullout tool.

    Only type a fuses can be removed using the pullout tool.

  2. Check if the fuse is blown.

Toyota Highlander. Under the drivers side instrument panel

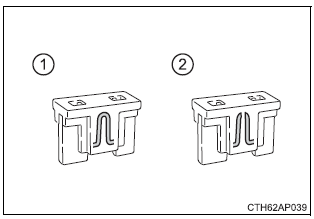

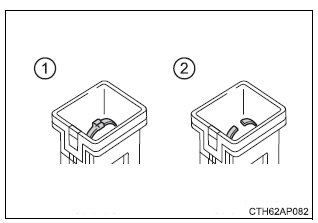

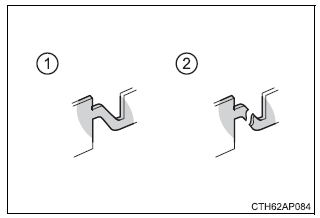

  1. Normal fuse
  2. Blown fuse

Type a and b: replace the blown fuse with a new fuse of an appropriate amperage rating.

The amperage rating can be found on the fuse box lid.

Type c:

Contact your toyota dealer.

Toyota Highlander. Checking and replacing fuses


Toyota Highlander. Checking and replacing fuses


Toyota Highlander. Checking and replacing fuses


After a fuse is replaced

If there is an overload in a circuit

The fuses are designed to blow, protecting the wiring harness from damage.

When replacing light bulbs

Toyota recommends that you use genuine toyota products designed for this vehicle. Because certain bulbs are connected to circuits designed to prevent overload, non-genuine parts or parts not designed for this vehicle may be unusable.

Warning


To prevent system breakdowns and vehicle fire

Observe the following precautions.

Failure to do so may cause damage to the vehicle, and possibly a fire or injury.

  • Never use a fuse of a higher amperage rating than that indicated, or use any other object in place of a fuse.
  • Always use a genuine toyota fuse or equivalent.

    Never replace a fuse with a wire, even as a temporary fix.

  • Do not modify the fuses or fuse boxes.



Notice


Before replacing fuses

Have the cause of electrical overload determined and repaired by your toyota dealer as soon as possible.
