Toyota Highlander Service Manual: Airbag sensor front LH

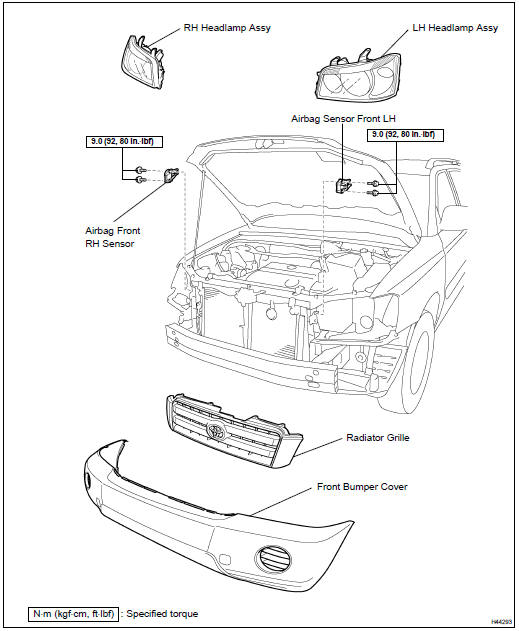

COMPONENTS

COMPONENTS


REPLACEMENT

HINT:

1. PRECAUTION (SEE PAGE 60-1 )

2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE PAGE 60-1 )

3. REMOVE FRONT BUMPER COVER (SEE PAGE 76-2 )

4. REMOVE RADIATOR GRILLE (SEE PAGE 76-2 )

5. REMOVE LH HEADLAMP ASSY (SEE PAGE 65-10 )

6. REMOVE AIRBAG SENSOR FRONT LH

REMOVE AIRBAG SENSOR FRONT LH


(a) Disconnect the connector from the airbag sensor front LH.

(b) Remove the 2 bolts and the airbag sensor front LH.

7. INSTALL AIRBAG SENSOR FRONT LH

(a) Check that the ignition switch is off.

(b) Check that the battery negative (-) terminal is disconnected.

CAUTION: After removing the terminal, wait for at least 90 seconds before starting the operation.

(c) Install the airbag sensor front LH with the 2 bolts.

Torque: 9.0 NVm (92 kgfVcm, 80 in.Vlbf)

NOTICE:

(d) Connect the connector to the airbag sensor front LH.

(e) Check that there is no looseness in the installation parts of the airbag sensor front LH.

8. INSTALL LH HEADLAMP ASSY (SEE PAGE 65-10 )

9. HEADLIGHT AIM ONLY (SEE PAGE 65-14 )

10. CONNECT BATTERY NEGATIVE TERMINAL

11. INSPECT SRS WARNING LIGHT (SEE PAGE 05-1207 )
