Toyota Highlander Owners Manual: Air conditioning filter

The air conditioning filter must be changed regularly to maintain air conditioning efficiency.

Removal method

  1. Vehicles without a smart key system: turn the engine switch to the lock position.

    Vehicles with a smart key system: turn the engine switch off.

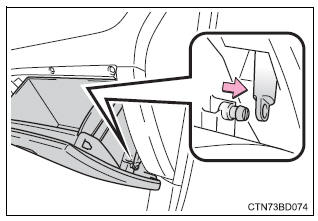

  2. Open the glove box. Slide off the damper.

Toyota Highlander. Removal method

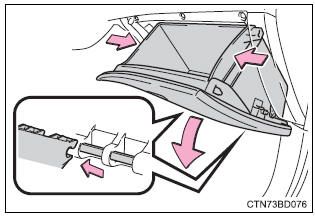

  1. Push in the glove box on the vehicles outer side to disconnect the claws. Then pull out the glove box and disconnect the lower claws.

Toyota Highlander. Removal method

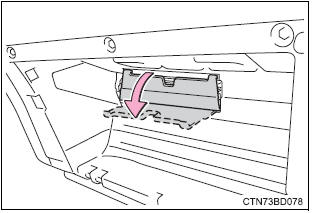

  1. Pull down the cover.

Toyota Highlander. Removal method

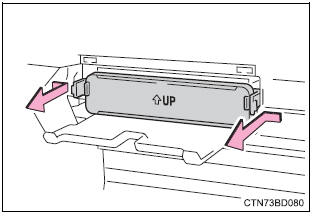

  1. Remove the filter cover.

Toyota Highlander. Removal method

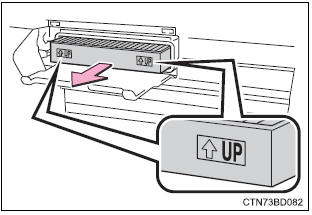

  1. Remove the air conditioning filter and replace it with a new one.

    The "up" marks shown on the filter should be pointing up.

Toyota Highlander. Removal method


Checking interval

Inspect and replace the air conditioning filter according to the maintenance schedule. In dusty areas or areas with heavy traffic flow, early replacement may be required. (For scheduled maintenance information, please refer to the "schedule maintenance guide" or "owner's manual supplement".)

If air flow from the vents decreases dramatically

The filter may be clogged. Check the filter and replace if necessary.

Notice


When using the air conditioning system

Make sure that a filter is always installed.

Using the air conditioning system without a filter may cause damage to the system.
