Toyota Highlander Service Manual: Air bag sensor rear LH

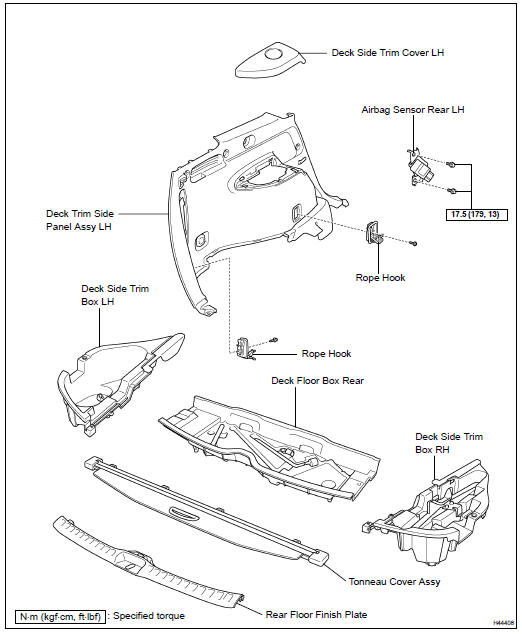

COMPONENTS

COMPONENTS


REPLACEMENT

HINT:

1. PRECAUTION (SEE PAGE 60-1 )

2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE PAGE 60-1 )

3. REMOVE TONNEAU COVER ASSY (SEE PAGE 76-21 )

4. REMOVE DECK FLOOR BOX REAR (SEE PAGE 76-21 )

5. REMOVE REAR FLOOR FINISH PLATE (SEE PAGE 76-21 )

6. REMOVE DECK SIDE TRIM BOX LH (SEE PAGE 76-21 )

7. REMOVE DECK SIDE TRIM BOX RH (SEE PAGE 76-21 )

8. REMOVE DECK SIDE TRIM COVER LH (SEE PAGE 76-21 )

9. REMOVE ROPE HOOK (SEE PAGE 76-21 )

10. REMOVE DECK TRIM SIDE PANEL ASSY LH (SEE PAGE 76-21 )

11. REMOVE AIR BAG SENSOR REAR LH

REMOVE AIR BAG SENSOR REAR LH


(a) Disconnect the connector from the airbag sensor rear LH.

(b) Remove the 2 bolts and the airbag sensor rear LH.

12. INSTALL AIR BAG SENSOR REAR LH

(a) Check that the ignition switch is off.

(b) Check that the battery negative (-) terminal is disconnected.

CAUTION: After removing the terminal, wait for at least 90 seconds before starting the operation.

(c) Install the airbag sensor rear LH with the 2 bolts.

Torque: 17.5 NVm (179 kgfVcm, 13 ftVlbf)

NOTICE:

(d) Connect the connector to the airbag sensor rear LH.

(e) Check that there is no looseness in the installation parts of the airbag sensor rear LH.

13. CONNECT BATTERY NEGATIVE TERMINAL

14. INSPECT SRS WARNING LIGHT (SEE PAGE 05-1207 )
