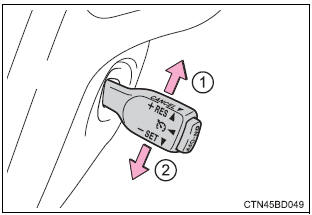

To change the set speed, operate the lever until the desired set speed is obtained.
Fine adjustment: momentarily move the lever in the desired direction.
Large adjustment: hold the lever in the desired direction.
The set speed will be increased or decreased as follows: fine adjustment: by approximately 1 mph (1.6 Km/h) each time the lever is operated.
Large adjustment: the set speed can be increased or decreased continually until the lever is released.
Parking brake cable ASSY NO.1
COMPONENTS
REPLACEMENT
1. PRECAUTION (W/ SIDE AIRBAG) (SEE PAGE 60-1 )
2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE PAGE 60-1 )
3. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER (SEE PAGE 71-10 )
4. REMOVE INSTRUMENT PNL INSERT SUB-ASSY LWR LH (SEE PAGE 71-10 )
5. REMOVE INSTRUMENT CL ...
